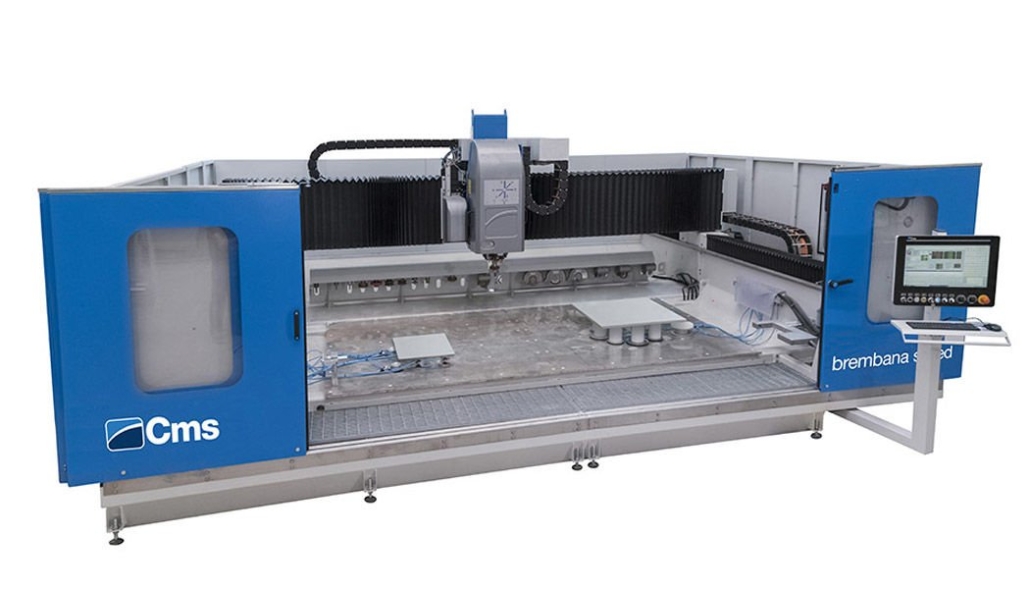

CMS Brembana Speed

BREMBANA SPEED 13

3-4 interpolated axes machining center

Designed for the machining of glass sheets and other materials, it can quickly and accurately perform grinding, polishing, drilling, milling, cutting with disk, engraving, writing and 5° beveling operations. It is the most compact and versatile CMS machining center, suitable especially for small and medium workshops.

• the mobile bridge gantry system with linear axis movement, ensures motion accuracy and easy loading/unloading of heavy workpieces

• linear axis speeds up to 54m/min, to reduce tool change times and axis positioning operations

• the electrospindle is CMS technology, liquid-cooled and with power up to 30kw in order to ensure maximum performance and ideal operating conditions

• the work surface is made of 15 mm thick solid alluminum for better stability and durability

BREMBANA SPEED MB

3-4 interpolated axes machining center

3-4 axes (on request) Numerically Controlled machining center for the processing of thin and thick flat glass sheets for both laminated and bullet-proof glass. It carries out any type of grinding, polishing, drilling, milling, cutting with disk, engraving, writing and 5° beveling operations.

• Y-axis gantry system provides the crossbeam motion via two brushless motors synchronized by the NC, in order to ensure maximum accuracy and reduction in positioning errors that are due to mechanical elasticity

• large-sized duralluminum work surface. The above ground height of 500 mm facilitates access to the machine and makes the glass sheet loading/unloading operations easier

• ultra-thick and normalized electrowelded ribbed steel monolithic base ensures sturdiness and rigidity for heavy-duty operations and durability

• the machine is adaptable to any need due, thanks to the high configurability of the tool rack

• dynamic compensation of the polishing wheel for better machining quality

• working water collection tank integrated with the base which reduces the machine’s footprint

Advantages

COMFORTABLE LOADING
Thanks to the automatic doors the machine can be loaded and downloaded automatic from an automatic  charger, while ensuring the total occupational safety for the operator.

SOLID ALUMINUM WORKTOP
Duralumin worktop 18 mm thick, for greater stability and durability. The table allows being adjusted more than 10 times.

DOUBLE PRODUCTIVITY
In the Twin version, thanks to the independent double head, productivity increases by up to 51%. Speed Twin, the only machine with two heads and 4 axes on the market, allows simultaneous drilling on identical pieces.

LIMITLESS TOOLS RACK
The wide modularity of the tools rack allows  to adapt the table to each need. The warehouses can be installed rear, side or also under the beam for a tool change in less than 10 seconds.

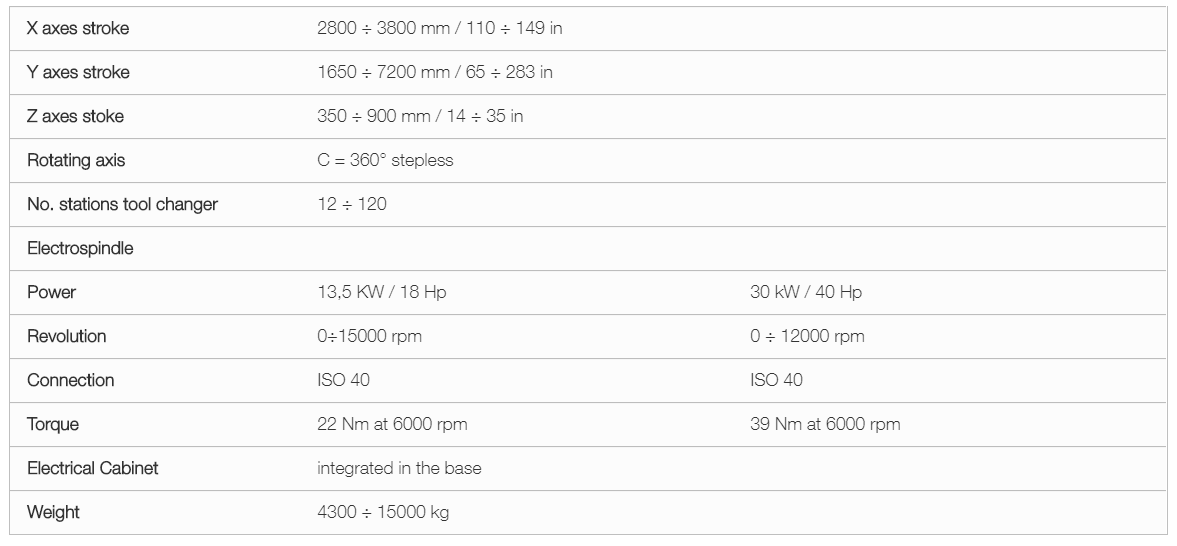

Technical Data
