Bovone 361/2

bovone logo

High-Precision Vertical Glass Bevelling Machine

The Bovone 361/2 is a robust vertical straight-line bevelling machine engineered for precision glass finishing. With dual wheels for smooth edge polishing, it supports bevel angles from 3° to 45° and bevel widths up to 60mm, making it ideal for complex architectural and interior glasswork.

Designed for reliability and continuous operation, the 361/2 delivers exceptional finish quality across every panel.

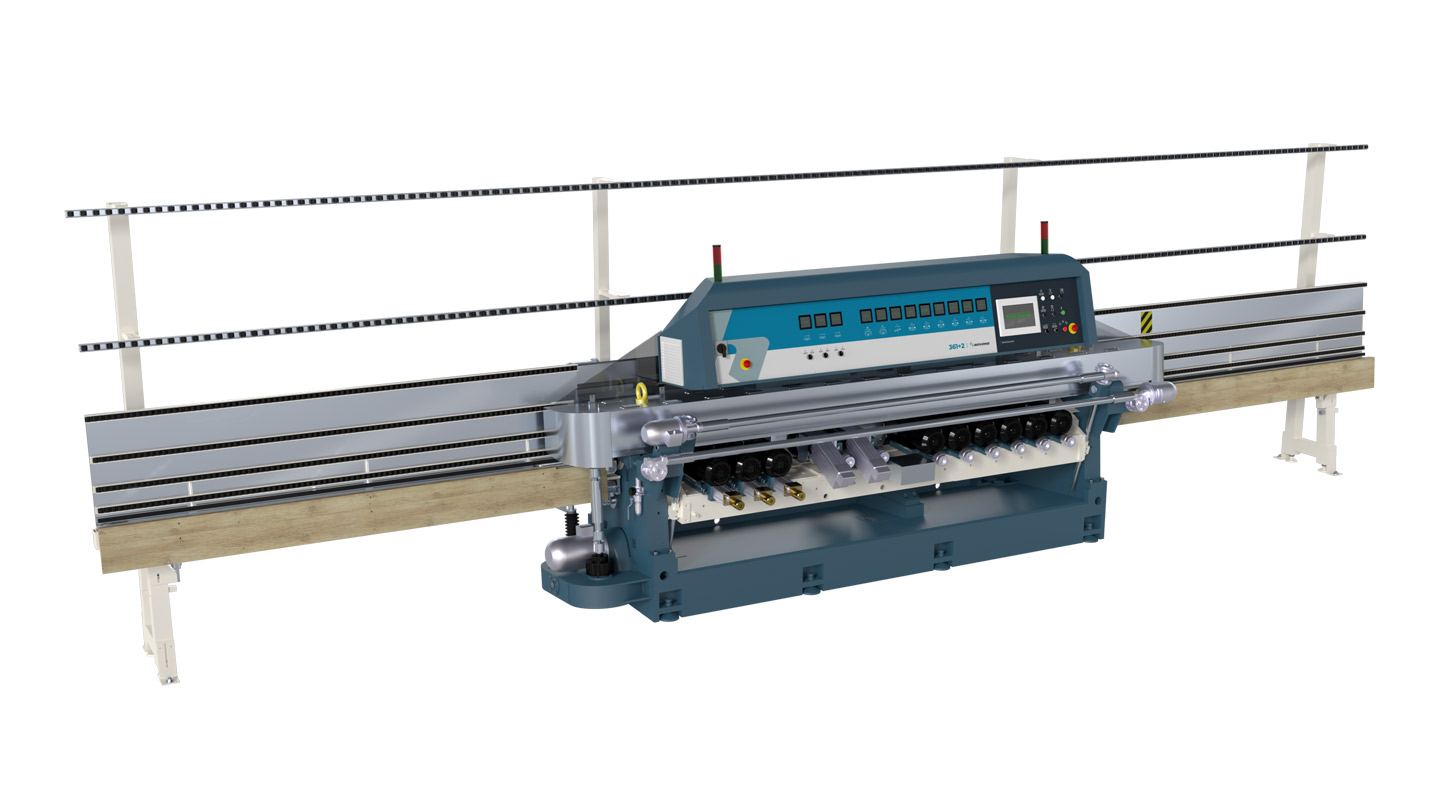

the machine bovone 361/2 vertical glass bevelling

Key Features

  • Vertical straight-line configuration with double-wheel system
  • Bevel angle adjustment from 3° to 45°
  • Supports bevel widths up to 60mm
  • Consistent edge polishing and arris removal
  • Durable construction for long-term use

Applications

  • Architectural glass and cladding
  • Mirrors and interior panels
  • Shopfitting and partitions
  • Decorative and custom glass pieces
  • High-end residential and commercial installations

Technical Data

MODEL
361/2
SPEED
[m/min]		0.35 – 5.4
ARRIS WIDTH
[mm]		–
MINIMUM SIZE
[mm]		35 x 35
THICKNESS
[mm]		3 – 25
BEVEL WIDTH (mm)up to 60
BEVEL ANGLE3° – 45°
ELECTRICAL POWER
400V 50Hz		400V 50Hz – 20kW 54A
DIMENSIONS
LxWxH
[mm]		7750(l) x 1300(w) x 2200(h)
WEIGHT
[Kg]		4030

Why Choose the Bovone 361/2

  • The Bovone 361/2 is trusted by manufacturers around the world for its superior edge quality and production speed. With dual polishing wheels and a compact design, it’s a smart investment for businesses seeking premium results with lower maintenance.
Download Brochure
