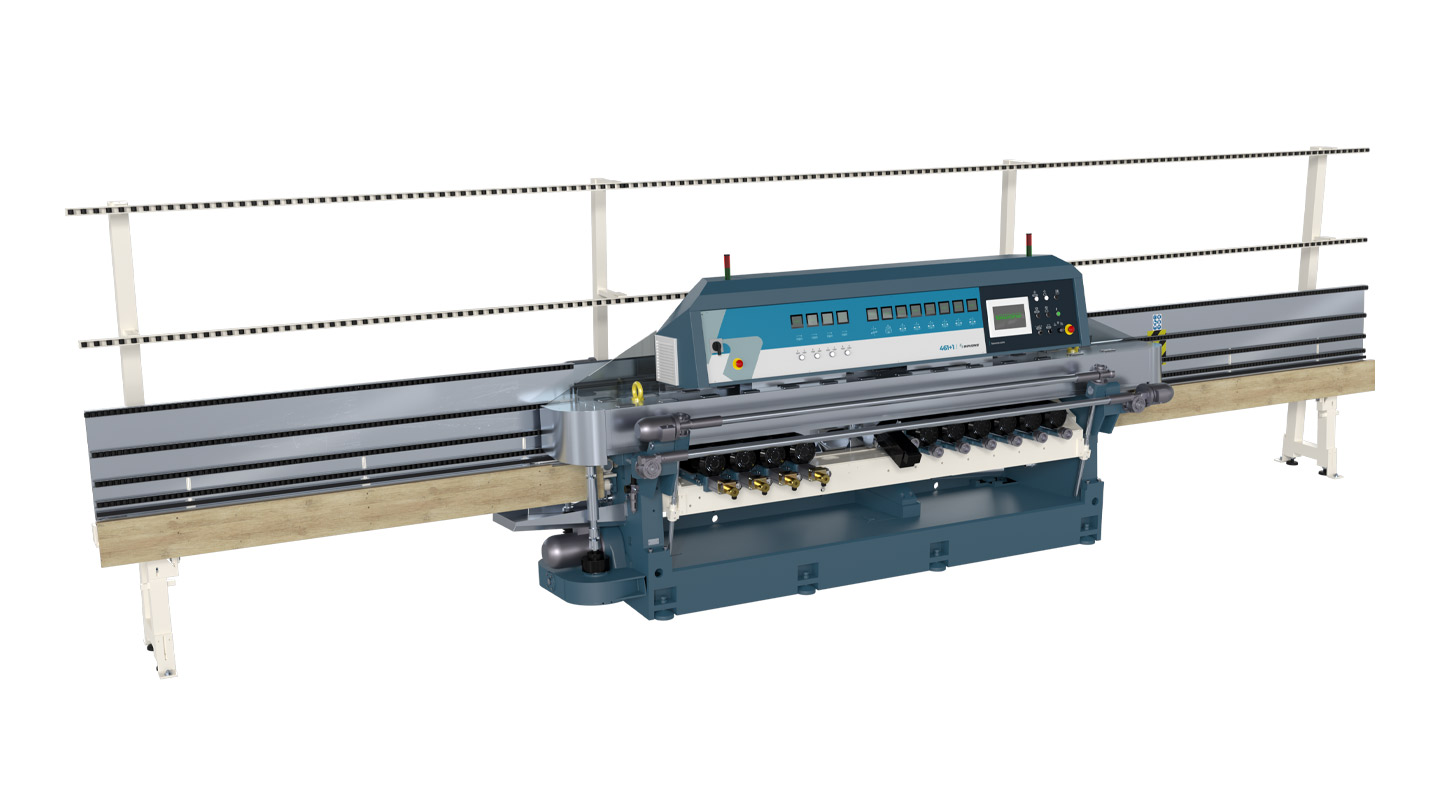

Bovone 461/1

Advanced Vertical Glass Bevelling Machine for Superior Finishes

The Bovone 461/1 is a single‑wheel vertical straight‑line bevelling machine designed to deliver precise bevels and high‑quality edge polishing. Built to handle bevel widths up to 60mm and variable angles from 3° to 45°, it’s ideal for architectural and decorative glass.

With reliable performance and a compact footprint, the 461/1 is perfect for glass processors seeking efficiency and accuracy.

Key Features

Single‑wheel vertical straight‑line design
Bevel widths up to 60mm
Variable bevel angles from 3° to 45°
Precise edge polishing for high‑end finishes
Compact and robust construction

Applications

Interior and exterior architectural glazing
Mirrors and feature glass walls
Shopfitting and display glass
Luxury residential and commercial projects
Decorative and curved glass finishing

Technical Data

MODEL	361/2
SPEED [m/min]	0.35 – 5.4
ARRIS WIDTH [mm]	–
MINIMUM SIZE [mm]	35 x 35
THICKNESS [mm]	3 – 25
BEVEL WIDTH (mm)	up to 60
BEVEL ANGLE	3° – 45°
ELECTRICAL POWER 400V 50Hz	400V 50Hz – 20kW 54A
DIMENSIONS LxWxH [mm]	7750(l) x 1300(w) x 2200(h)
WEIGHT [Kg]	4030

Why Choose the Bovone 461/1

Trusted for its precision, consistency, and ease of use, the Bovone 461/1 offers streamlined operation without compromising on finish quality. It is a reliable solution for demanding production environments where space and quality matter.
