Bovone 462

bovone logo

Heavy-Duty Vertical Bevelling Machine for High-Volume Glass Processing

The Bovone 462 is a dual-wheel vertical straight-line bevelling machine designed to tackle intensive glass processing environments. Built for performance and durability, it delivers consistent bevels up to 60mm wide with variable angles from 3° to 45°.

Ideal for large-format and high-volume architectural glass production, the 462 combines precision, speed, and a robust build for long-term reliability.

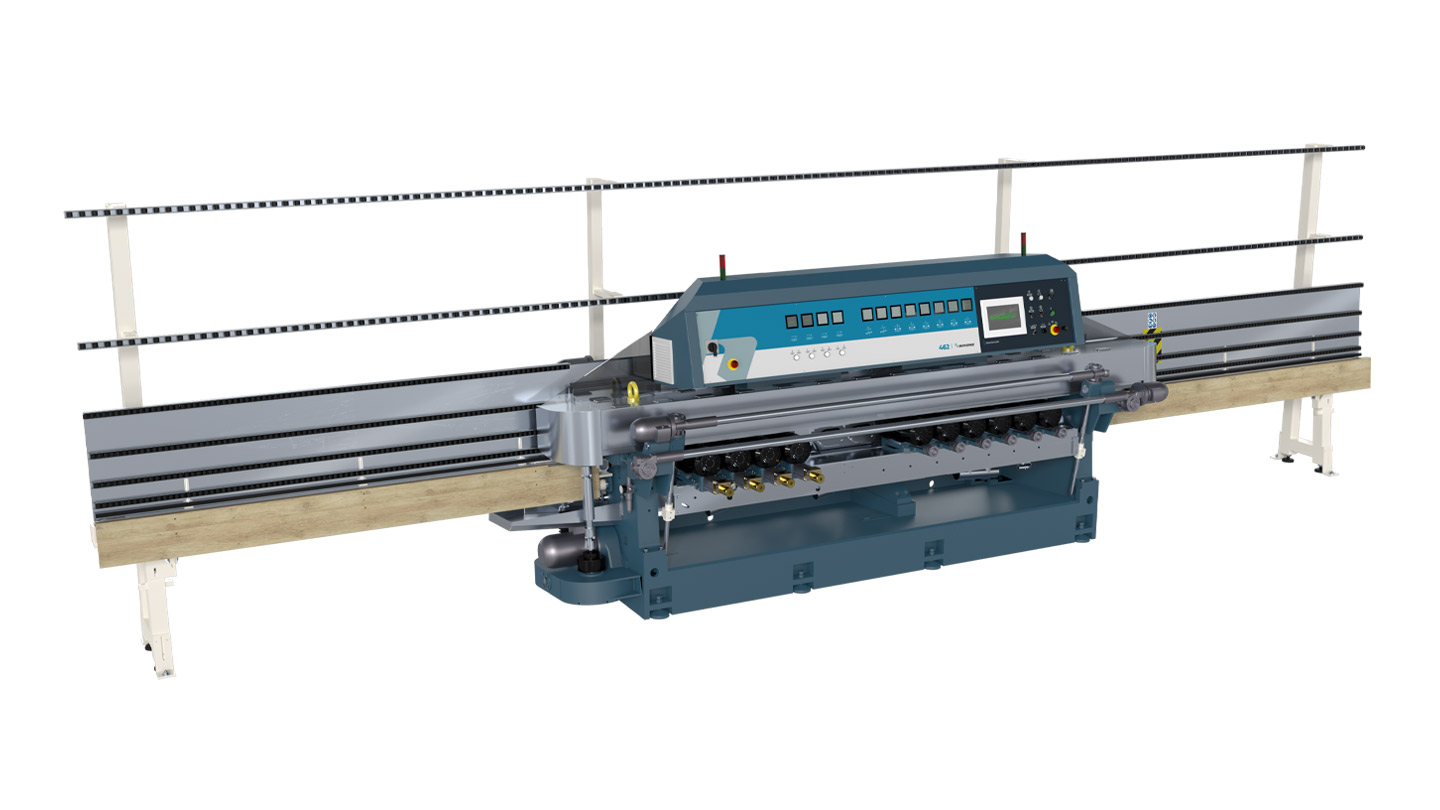

bovone 462

Key Features

  • Dual-wheel vertical straight-line configuration
  • Bevel widths up to 60mm
  • Variable angles from 3° to 45°
  • Designed for heavy-duty production lines
  • Maintains precision across long shifts and thick glass

Applications

  • Commercial façade glazing
  • Mirrors and decorative architectural glass
  • High-volume production facilities
  • Complex bevel finishes in shopfitting and interior design
  • Glass doors, partitions and display units

Technical Data

MODEL
462
SPEED
[m/min]		0.35 – 5.4
ARRIS WIDTH
[mm]		–
MINIMUM SIZE
[mm]		35 x 35
THICKNESS
[mm]		3 – 25
BEVEL WIDTH (mm)up to 60
BEVEL ANGLE3° – 45°
ELECTRICAL POWER
400V 50Hz		400V 50Hz – 20kW 56A
DIMENSIONS
LxWxH
[mm]		7750(l) x 1300(w) x 2200(h)
WEIGHT
[Kg]		4100

Why Choose the Bovone 462

  • The Bovone 361/2 is trusted by manufacturers around the world for its superior edge quality and production speed. With dual polishing wheels and a compact design, it’s a smart investment for businesses seeking premium results with lower maintenance.
Download Brochure
