Bovone 471

bovone logo

High-Precision Vertical Glass Bevelling Machine with Dual Wheels

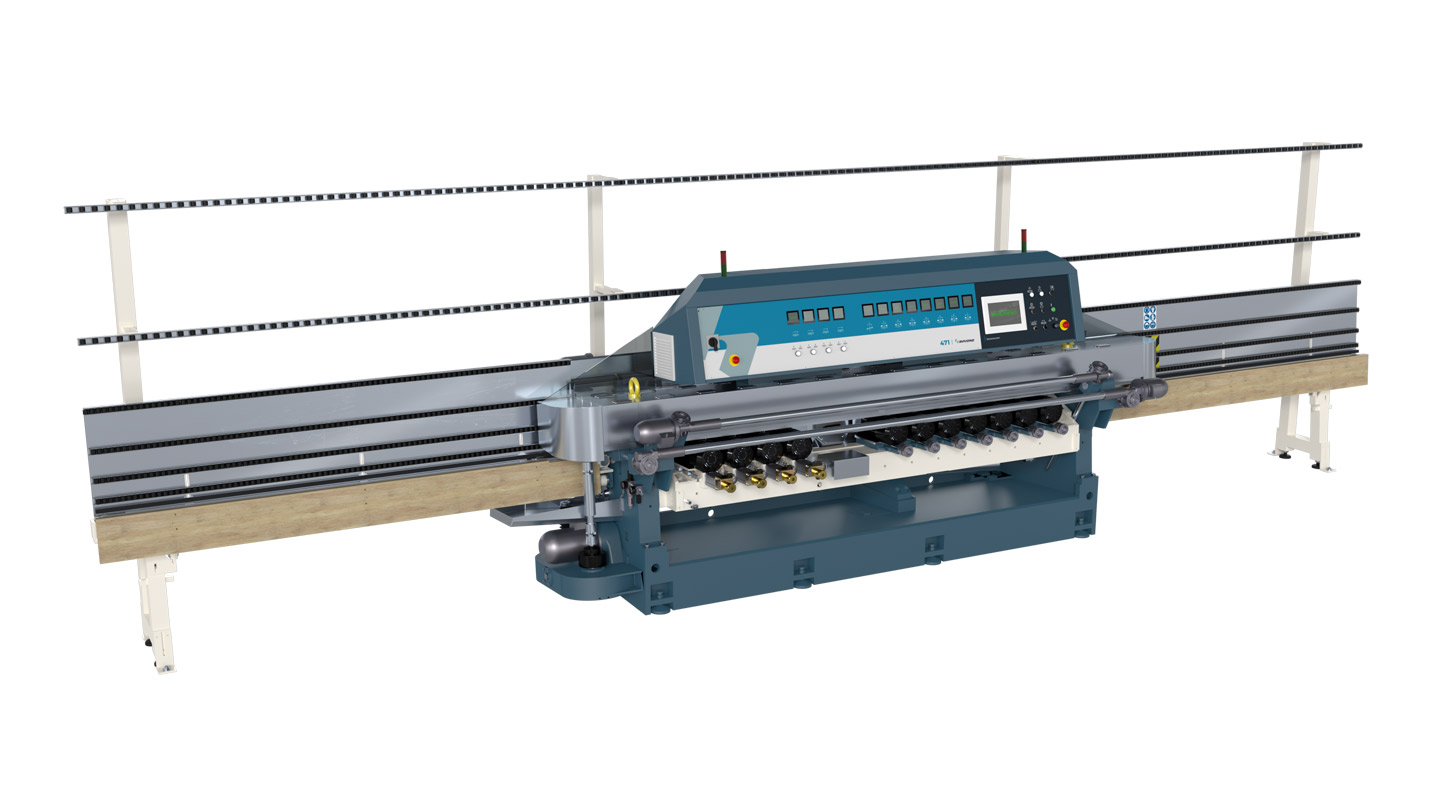

The Bovone 471 is a vertical straight-line bevelling machine equipped with dual wheels for superior polishing quality and faster throughput. Designed for glass processors demanding reliable performance across long production runs, it delivers consistent results on bevel widths up to 60mm and angles from 3° to 45°.

Whether you’re producing decorative glass, architectural panels or mirrors, the Bovone 471 offers exceptional edge quality with minimal manual input.

Key Features

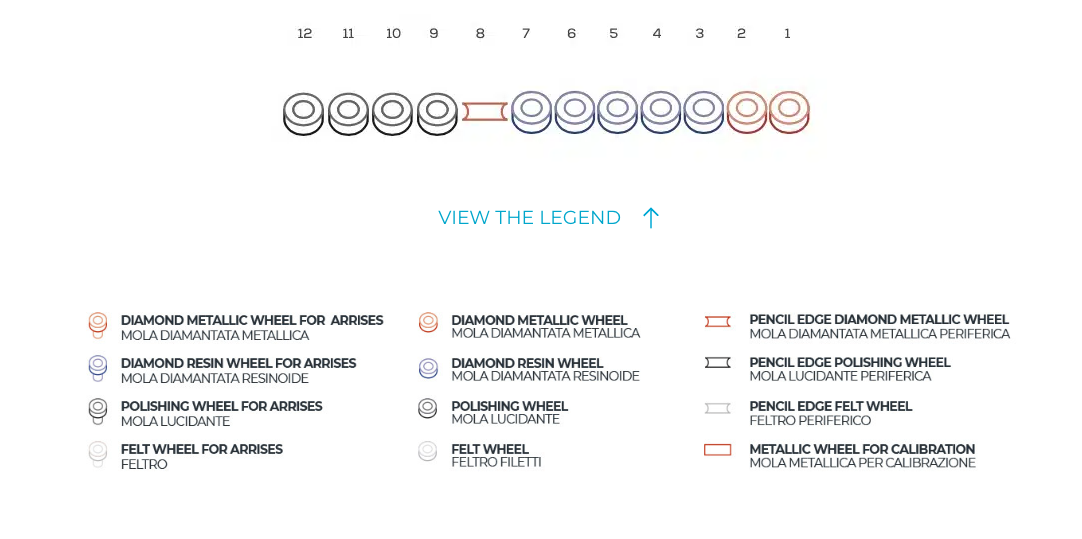

  • Dual-wheel vertical bevelling design
  • Bevel angles adjustable from 3° to 45°
  • Bevel widths up to 60mm
  • Built for continuous industrial use
  • High finish quality on every piece

Applications

  • Architectural glass and window panels
  • Framed and unframed mirrors
  • Interior fitouts and shopfitting
  • Glass furniture and display glass
  • High-end residential and commercial glazing

Technical Data

MODEL
471
SPEED
[m/min]		0.35 – 5.4
ARRIS WIDTH
[mm]		–
MINIMUM SIZE
[mm]		35 x 35
THICKNESS
[mm]		3 – 25
BEVEL WIDTH (mm)up to 60
BEVEL ANGLE3° – 45°
ELECTRICAL POWER
400V 50Hz		400V 50Hz – 20kW 56A
DIMENSIONS
LxWxH
[mm]		7750(l) x 1300(w) x 2200(h)
WEIGHT
[Kg]		4100

Why Choose the Bovone 471

Precision and productivity combine in the Bovone 471. Its vertical structure optimises space while supporting seamless bevel production across varying thicknesses. Dual wheels ensure a clean, polished edge every time, reducing rework and increasing efficiency.

Download Brochure
