ELB 12 100

Heavy-Duty Glass Edging for Maximum Thickness and Power

The Bovone ELB 12 100 is a specialised straight-line edging machine engineered for processing glass up to 100mm thick. With 12 powerful spindles and a reinforced structure, it’s built to handle oversized and heavy glass panels with ease, precision, and consistency.

Key Features

12 spindles with variable configuration for edge grinding and polishing
Supports ultra-thick glass processing up to 100mm
Reinforced chassis ensures mechanical rigidity and accuracy
Advanced cooling and lubrication systems for continuous operation
Adjustable conveyor system and pressure guides for high-volume use
Designed for oversized architectural, safety, or decorative glass

Applications

Bulletproof and safety glass manufacturing
Structural glazing and oversized façade panels
Custom architectural elements and art installations
Glass flooring and staircase components
High-end decorative glass products

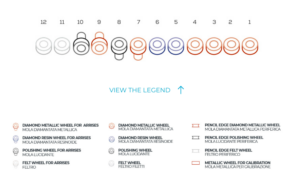

elb 12 100 legend

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
MITER ANGLE	–
ARRIS WIDTH [mm]	5
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	3 – 30
ELECTRICAL POWER 400V 50Hz	400V 50Hz / 36kW / 80A
DIMENSIONS LxWxH [mm]	8650 (L) x 1250 (W) x 2900 (H)
WEIGHT [Kg]	5000

Why Choose the Bovone ELB 12 100

Designed for specialist applications requiring exceptional thickness and precision, the ELB 12 100 offers the trusted durability of Bovone technology. Ideal for manufacturers dealing with large-format or extra-thick glass, it guarantees reliability, accuracy, and finish quality in every cycle.
