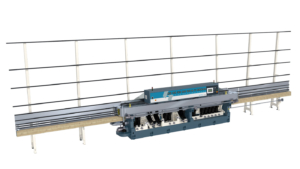

Bovone ELB 17/45

High-Speed Straight-Line Edging with 45° Mitering.

The Bovone ELB 17/45 is built for high-volume glass manufacturers who require premium-quality flat edge and 45° mitered finishes in one seamless process. With 17 precision spindles—14 for edge and arris polishing, and 3 for mitering—this heavy-duty straight-line edger delivers exceptional results across a wide range of applications.

Key Features

17 total spindles: 14 for edge polishing, 3 for 45° mitering
Dual-function machine: flat edge + mitering without repositioning
High-speed production with stable conveyor movement
Ideal for large glass sheets and architectural use
User-friendly interface and minimal setup time
Built to Bovone’s world-class standards for accuracy and durability

Applications

Architectural and interior fit-outs with flat or angled glass edges
Glass curtain walls, doors, partitions, and balustrades
High-volume commercial glass processing
Shopfitting and premium glass furniture production
Large-format decorative glass projects

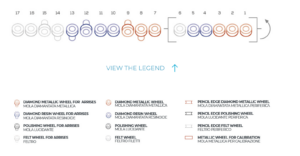

bovone ELB 17/45 legend

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
ARRIS WIDTH [mm]	5
MITER ANGLE	0-45
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	3-45
ELECTRICAL POWER 400V 50Hz	400V 50Hz / 38kW / 83A
DIMENSIONS LxWxH [mm]	9350 (L) x 1250 (W) x 2900 (H)
WEIGHT [Kg]	5700

Why Choose the Bovone ELB 17/45

When time, accuracy, and flexibility are non-negotiable, the ELB 17/45 is your answer. By combining powerful polishing with 45° mitering in a single workflow, this machine enhances productivity without compromising finish quality—trusted by glass professionals worldwide.
