Bovone Stonedge 15/45 Radius

bovone logo

High-volume edging with seamless radius finishing

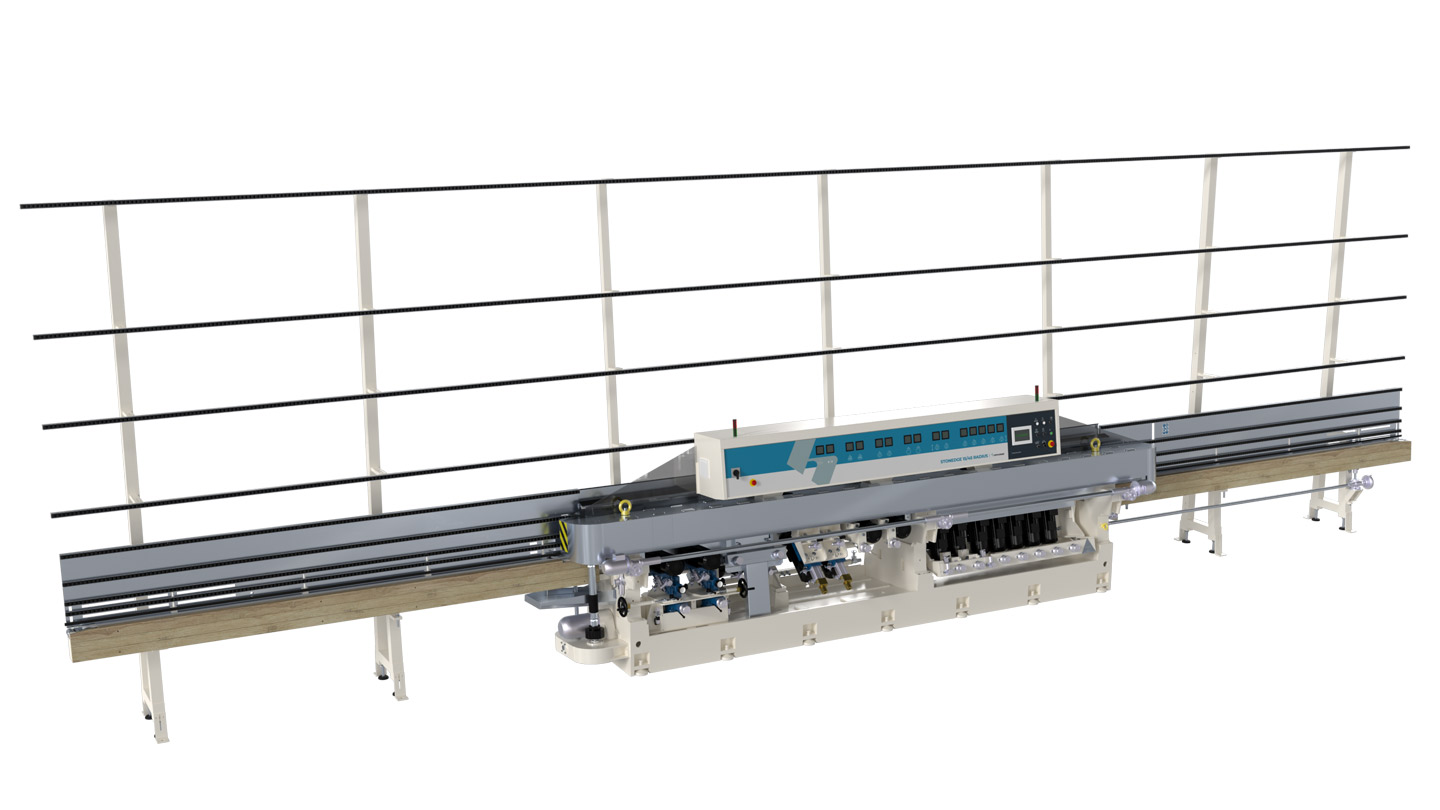

The Stonedge 15/45 Radius by Bovone is a high-capacity straight-line edging machine built for continuous use in stone and ceramic processing lines. Designed with 15 spindles and a 45° tiltable edge, it includes a dedicated unit for polishing the front and rear radius—delivering a smooth, finished look in a single pass.

Ideal for large-scale countertop manufacturers or architectural stone projects, this machine combines accuracy, efficiency, and reliable Italian engineering.

bovone stonedge 15/45 radius legend

KEY FEATURES

  • 15 robust spindles for industrial-grade performance
  • 45° tilting capability for precision mitres and bevels
  • Dedicated front and rear radius polishing unit
  • Processes hard materials like quartz, porcelain, and sintered stone
  • Touchscreen HMI and simplified maintenance system

APPLICATIONS

  • Kitchen and bathroom countertops
  • Wall panels and façades
  • Stone furniture and cladding
  • Staircases, thresholds, and tiles
  • Outdoor street furniture

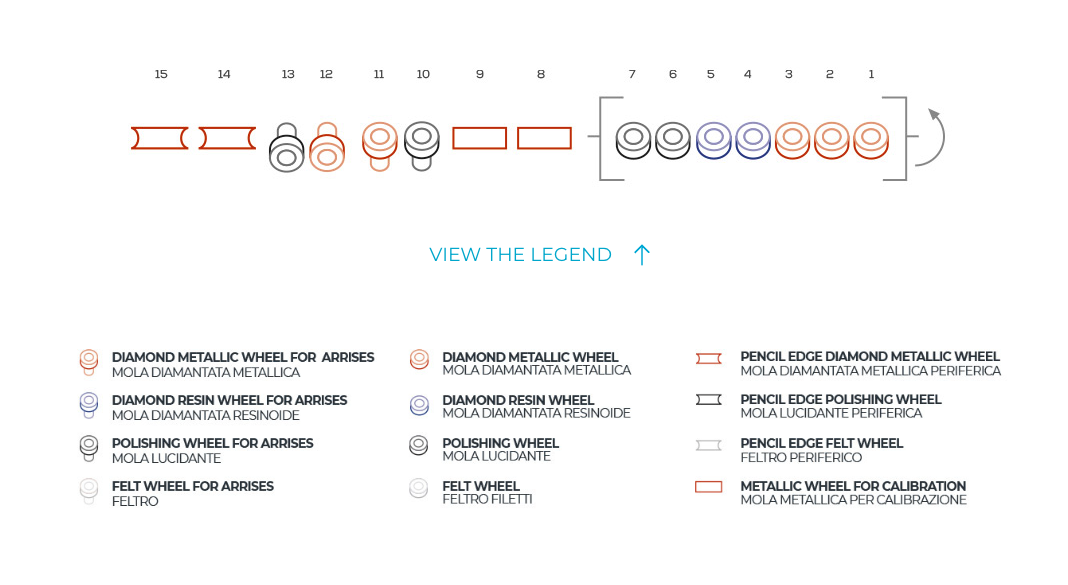

stonedge 15/45 radius legend

Technical Data

Feature
 Specification
SPEED
[m/min]		0.3 – 3.8
ARRIS WIDTH
[mm]		–
MITER ANGLE0° – 45°
MINIMUM SIZE
[mm]		420×130
THICKNESS
[mm]		10-60
ELECTRICAL POWER
400V 50Hz		58kw
DIMENSIONS
LxWxH
[mm]		9250 (L) x 1700 (W) x 2350 (H)
WEIGHT
[Kg]		8700

why choose Bovone Stonedge 15/45 Radius

  • All-in-one edge finishing – Mitring, flat polishing, and radius work in one pass
  • Exceptional quality – Delivers premium surface finishes on demanding materials
  • Time-saving for high-output production – Reduces handling and secondary steps
  • Trusted Italian craftsmanship – Engineered by a leading global manufacturer
