CMG Flotter

Small dimensions, maximum quality

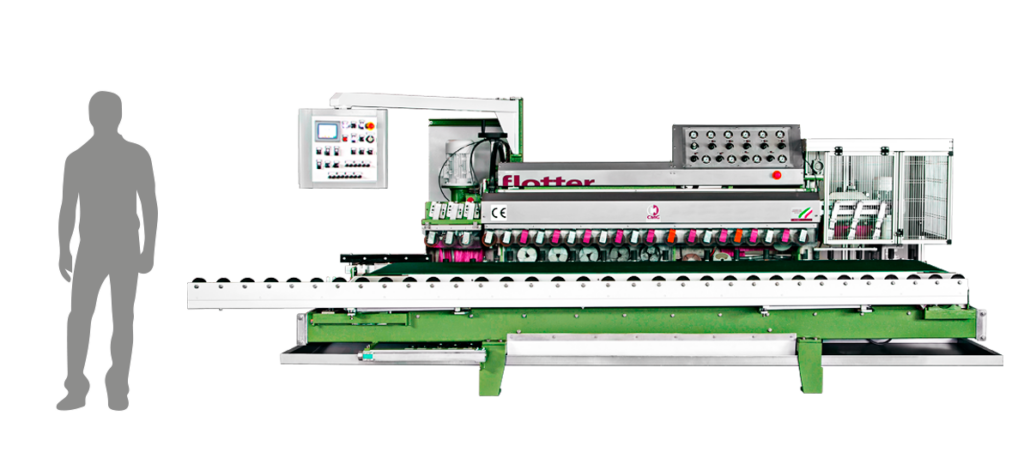

The edge-polisher Flotter 520 is suitable for polishing and profiling the edges on composite stones. A small machine that is simple to use and maintain.

The electronic equipment sets the partial polishing, the on/off regulation of the polishing heads, the automatic polishing of irregular shape like winding staircase and many other possibilities.

It consists of:

• Support bar with manual adjustment to support slabs with different dimensions.
• 1 meter roller tables to support the pieces being processed.
• Kw. 4 universal cutter for upper, lower and inclined cutting with various tilting degrees.
• Kw. 4 calibrator with vertical and horizontal adjustment.

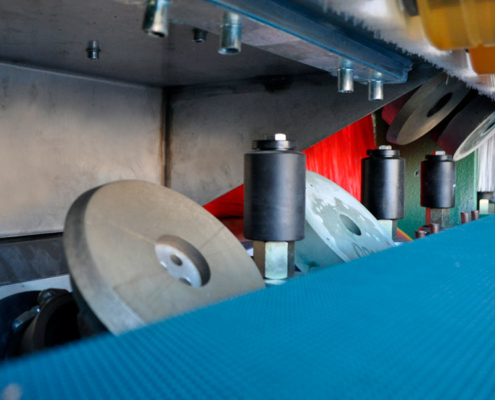

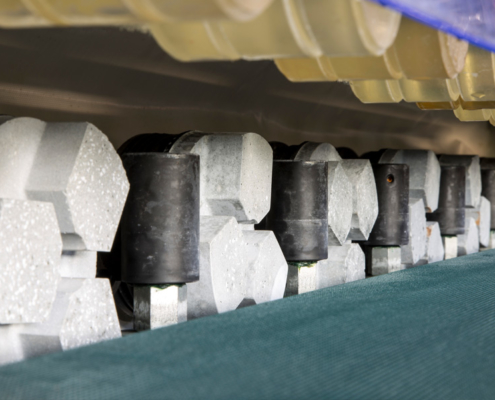

• 5 frontal polishing heads with an independent regulation of the air pressure.
• Protection carter and cover in stainless steel.
• The conveyor belt runs on cold drawn flat stainless steel bars of 12 mm.
