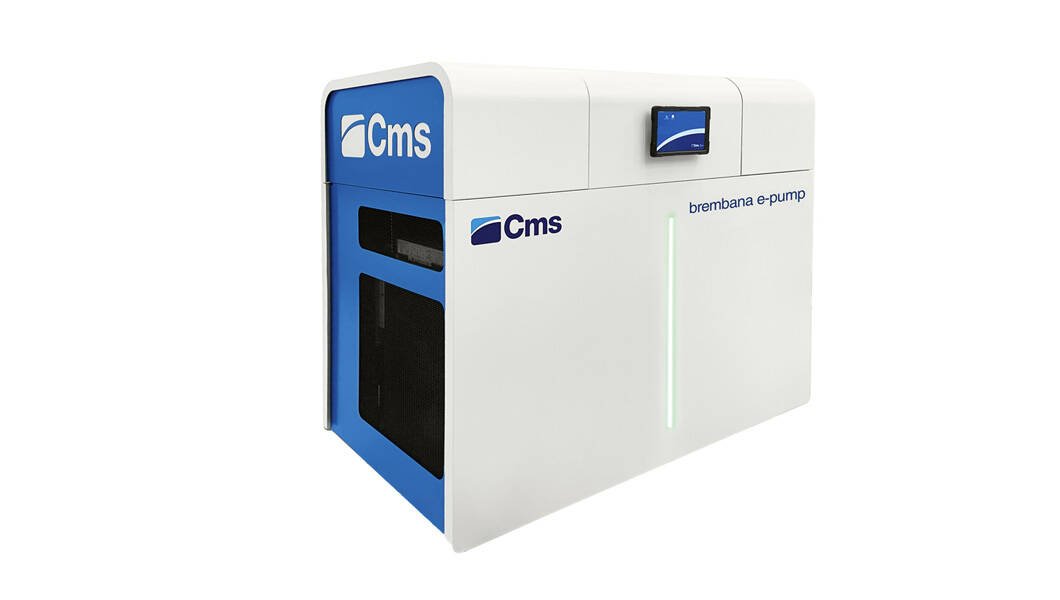

CMS brembana e-pump
HYBRID INTENSIFIER
BREMBANA E-PUMP is the latest innovation in the range of CMS Stone Technology intensifiers created as a continuation of the quest by CMS for efficiency, performance, energy consumption and low environmental impact in the world of pressure intensifiers for waterjet cutting applications. This new project was carried out entirely in the CMS engineering department and has given rise to an innovative product that combines the power density of a hydraulic pump with the energy efficiency of a direct-drive mechanical architecture. The simplicity of the system translates into a significant reduction in components: up to 95% compared to a conventional hydraulic intensifier.

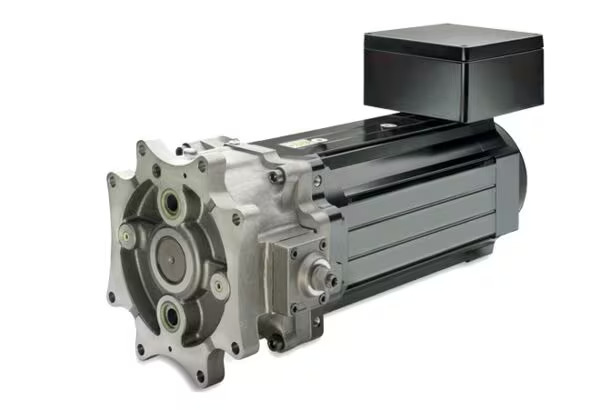

Brembana e-pump exploits an electrohydrostatic unit connected directly to long-stroke pressure multiplier cylinders, achieving an operating
efficiency of more than 31% compared to hydraulic intensifiers. The intensifier has an on-board intelligence with portable tablet (Wi-Fi) and touch display for monitoring and controlling operating parameters and performing diagnostics on hydraulic and high-pressure components.
Brembana e-pump can be installed on any cutting table, even third-party ones.
Advantages
VERY HIGH EFFICIENCY
The innovative brembana e-pump technology guarantees 31% better efficiency compared to a conventional hydraulic intensifier, partly due to a 95% reduction in hydraulic components and the direct hydraulic unit interface to eliminate pressure losses and long-term wear.
MAXIMUM ENERGY SAVINGS
-37% electricity consumption due to a combination of cutting cycles and rapid movements. The hybrid double-acting pressure pump with direct connection is optimized to reduce consumption, thanks to the use of a brushless servomotor controlled by an inverter. The primary motor and auxiliary motors controlled by inverters allow brembana e-pump to adapt better to the working conditions and eliminate starting current peaks.
WI-FI TABLET WITH WEB HMI
The intensifier is controlled by an industrial PLC in the electrical cabinet in order to interface with CMS Waterjets, as well as third party ones.

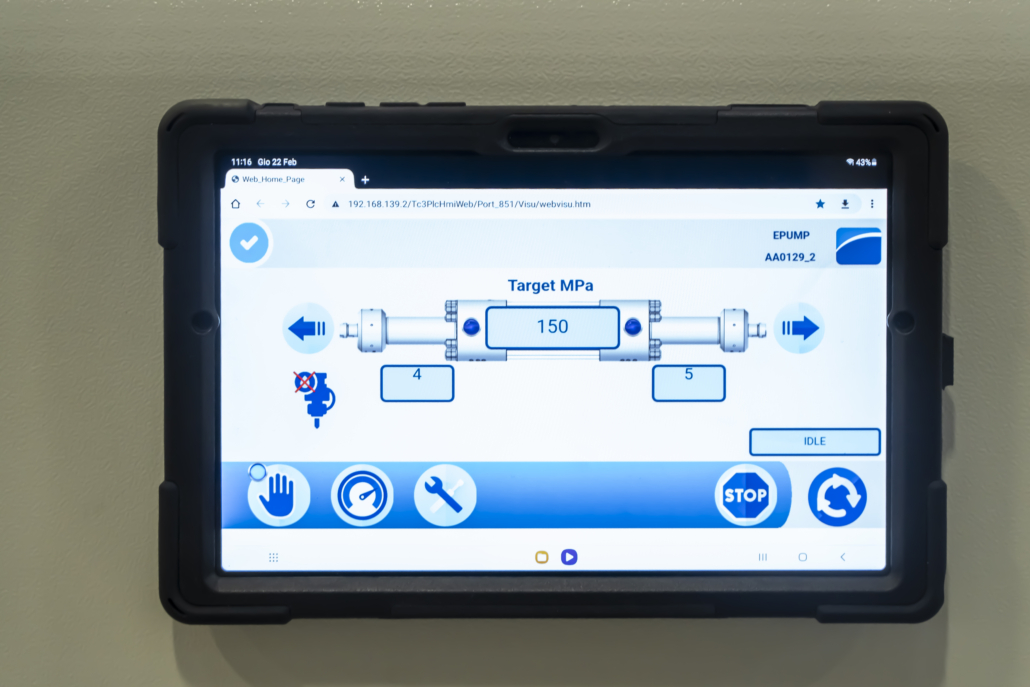

The HMI control interface is accessible from the10.4” Wi-Fi tablet and offers:
-remote diagnostics
– power management and control
– management and control of the cycle number per cylinder
– electronic cutting pressure control
REMOTE MANAGEMENT

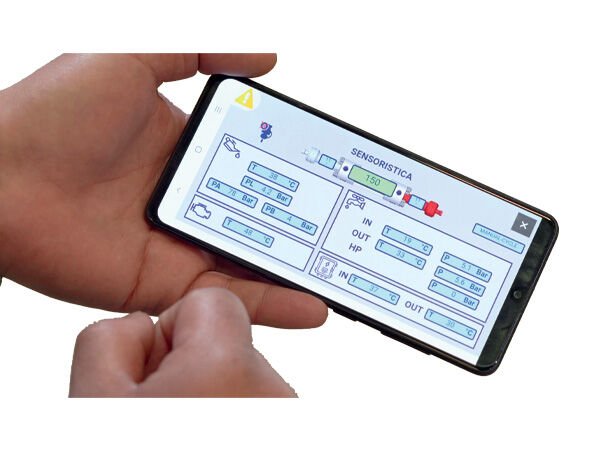

The intensifier web interface is accessible remotely via computer or smartphone to view operation, see any alarms and activate the emergency STOP command when necessary.

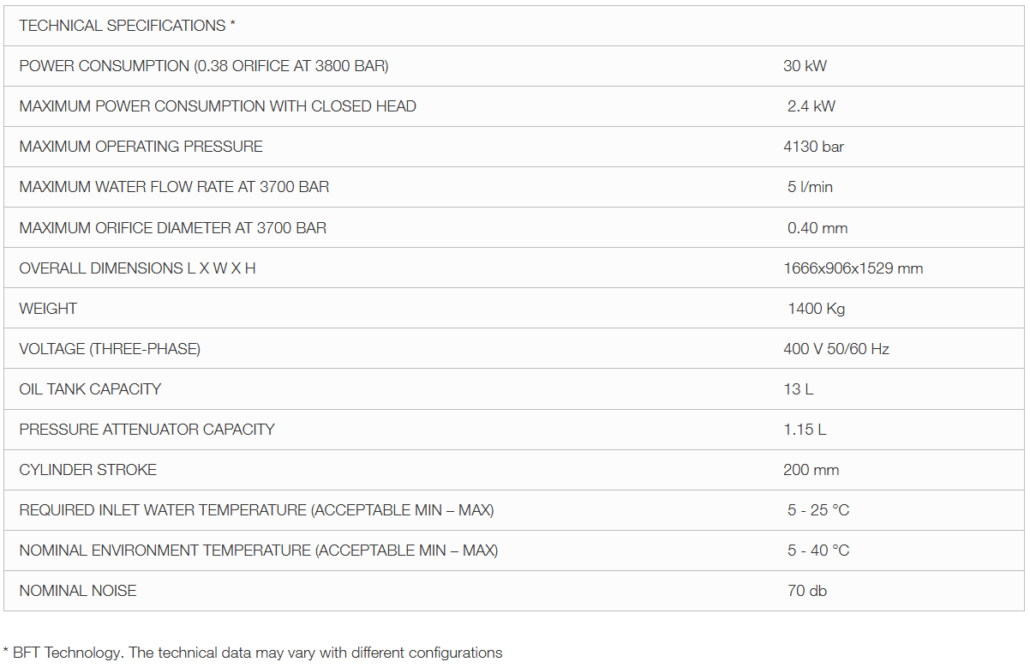

Technical Data
