ITALMECC Ecopress 800 & 500

Automatic filter-presses XL Series

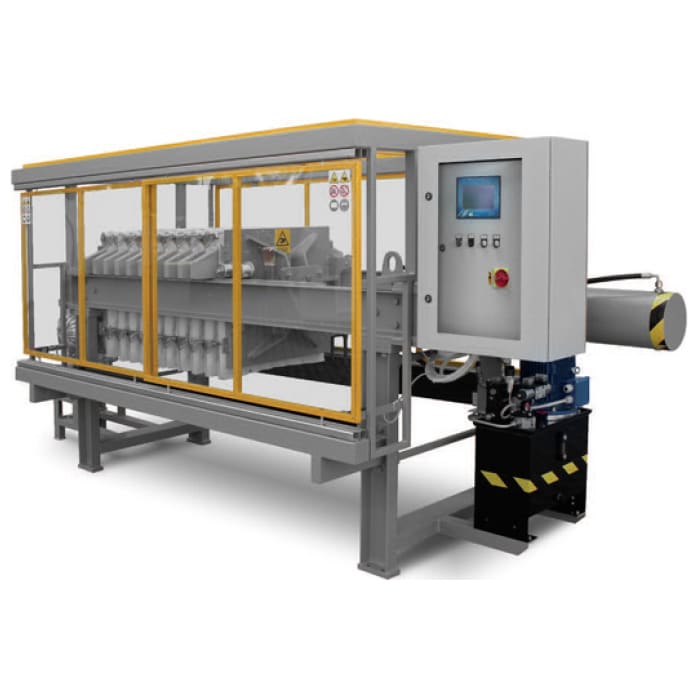

High efficiency filter presses XL series, with plates dimensions of 500x500mm and 800x800mm, represent the best solution of mud treatment for the medium and the big Stone, Concrete, Glass companies as wells as Quarries for important mud quantities.

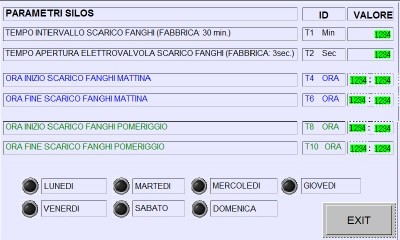

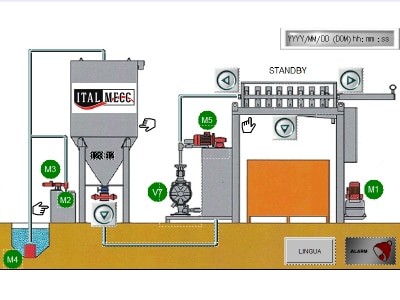

Structural solidity and wearing resistance, thanks to the high quality of the materials used, represent the strengths of the machine. Touchscreen control panel allows the total management of the water recycling system in an easy and quick way for the operator, both in semi-automatic and fully automatic mode.

How it works:

The filter press separates the liquids and solids, specifically when managing slurry produced by clarifiers, using pressure filtration. The slurry is pumped into the filter press chamber and is dewatered under pressure. Each filter press is designed based on the volume and type of slurry that needs to be dewatered. A filter-press doesn’t substitute the Silo water clarifier, it is part of the process to manage the sludge.

Advantages

  • 10 Minute Cleaning Cycles
  • Crystal ClearWater released
  • Recycles 100% of your process water
  • Increases productivity and saves money
  • Satisfies industrial discharge permitting requirements
  • Turns stone sludge into manageable dry panels
  • Full automated controls
  • Applicable to all the machinery that works with water
  • Hourly production rates from 0,2 to 2 m3/h – higher quantity on request;
  • Dirty water system flow rates from 1.000 to 4.000 lt/min – higher quantity on request.

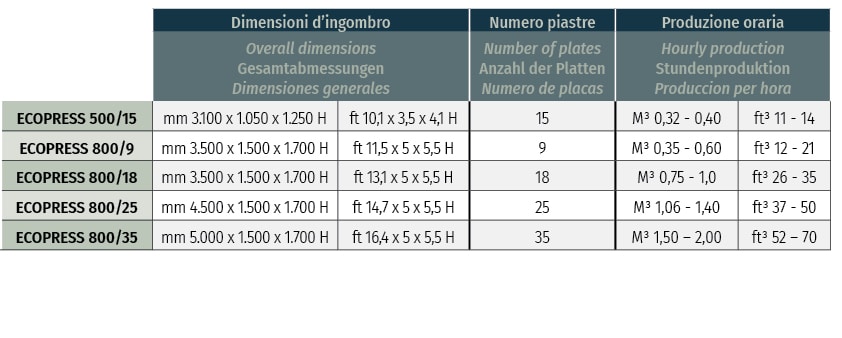

Technical Data
