BLADES FOR BRIDGESAWS
Vincent is one of the few suppliers of Diamond blades that actually makes the blades in-house. This allows them to directly execute on customer feedback and requests to improve their products. Innovating since 1974, Vincent has acquired years of know-how that has translated into their line-up of blades. No fancy colours, just pure performance.

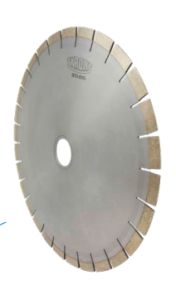

GT2-EVO – THE ALL-ROUNDER
GT2-EVO is the standard option for most bridge saws. It features a SILENT CORE and is designed for straight and angled cutting of GRANITE and ENGINEERED STONE.
The indicative feed rates are: 2-5 m/min on 20mm and 1.2-1.8 m/min on 30mm thick materials
Technical Parameters
| DIAMETRE | SEGMENT | BORE | RPM | CODE |
| 350mm | 40×3.2×15 | 50/60mm | 1500-1900 | 00058318 |
| 400mm | 40×3.2×5 | 50/60mm | 1300-1650 | 00067054 |
| 450mm | 40×3.6×15 | 50/60mm | 1300-1450 | 00039308 |
GT2-EVO2 – THE ALL-ROUNDER +
GT2-EVO2 is THE ALL IN ONE BLADE. Easier cutting and better finish than the GT2-EVO this blade is also able to work with natural QUARTZITES like Taj-Mahal.
The indicative feed rates are: 0,8 – 1 m/min on 2 cm natural quartzites like Taj-Mahal.
Technical Parameters
| DIAMETRE | SEGMENT | BORE | RPM | CODE | PRICE |
| 350mm | 40×3.3×15 | 50/60mm | 1500-1900 | 00080358 | Contact Us |
| 400mm | 40×3.3×5 | 50/60mm | 1300-1650 | 00053936 | Contact Us |
| 450mm | 40×3.6×15 | 50/60mm | 1300-1450 | 00075310 | Contact Us |

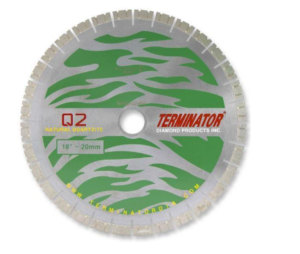

Q2S2/PD – TERMINATOR OF QUARTZITE
This premium blade with arrayed diamond segments and a “Natural” angle segment design, is our fastest option to cut QUARTZITE with good quality.
The indicative feed rates are: 2-3 m/min on 2mm natural quartzites like Taj-Mahal.
Technical Parameters
| DIAMETRE | SEGMENT | BORE | RPM | CODE | PRICE |
| 350mm | 40×3.3×20 | 50/60mm | 1600-2050 | 00081895 | Contact Us |
| 400mm | 40×3.3×20 | 50/60mm | 1400-1800 | 00074801 | Contact Us |
M0LCR – THE MARBLE & LIMESTONE FAVOURITE
This SILENT CORE saw blade is designed to perform reliable and precise cutting on compact or little abrasive/porous marble and limestone in a wide range of applications on bridge saws. The TURBO version features longer and higher turbo segments for longer lifetime and enhanced cutting quality.
Technical Parameters
| DIAMETRE | SEGMENT | BORE | RPM | CODE |
| 350mm | 40×3.2×7 | 50/60mm | 2200-2700 | 00038401 |
| 360MM TURBO | 42×3.2×10 | 50/60mm | 1400-1800 | 00063186 |
| 400mm | 40×3.3×5 | 50/60mm | 1900-2350 | 00075927 |
| 410mm TURBO | 50/60mm | 1900-2350 | 00064851 | |
| 450mm | 40×3.6×15 | 50/60mm | 1700-2100 | 00065541 |
| 460mm TURBO | 50/60mm | 1700-2100 | 00067500 |
HQ5 – UCS/CERAMICS SPECIALIST
This blade guarantees easy cutting and good finish also on low HP machines working with high rpm (more than 36 – 40m/s).
Recommended for SINGLE PASS CUTTING UP TO 30mm and 45° cutting of any ceramic over-sized tile and slab. Indicative feed rate 1-3 m/min.
- A 40% reduction of the speed rate is always suggested when entering and exiting the material.
- The feed rate varies depending on thickness and type of material
- For 45° cutting, the speed should be 40% less than during straight cutting
| DIAMETRE | SEGMENT | BORE | RPM | CODE |
| 350mm | 10 | 50/60mm | HQ5350 | |
| 400mm | 10 | 50/60mm | 2500-2900 | 00086245 |
| 450mm | 10 | 50/60mm | HQ5450 |
Contact us to find out more or discuss pricing on any of the Vincent range. Or view more stone accessories from the Vincent range.
