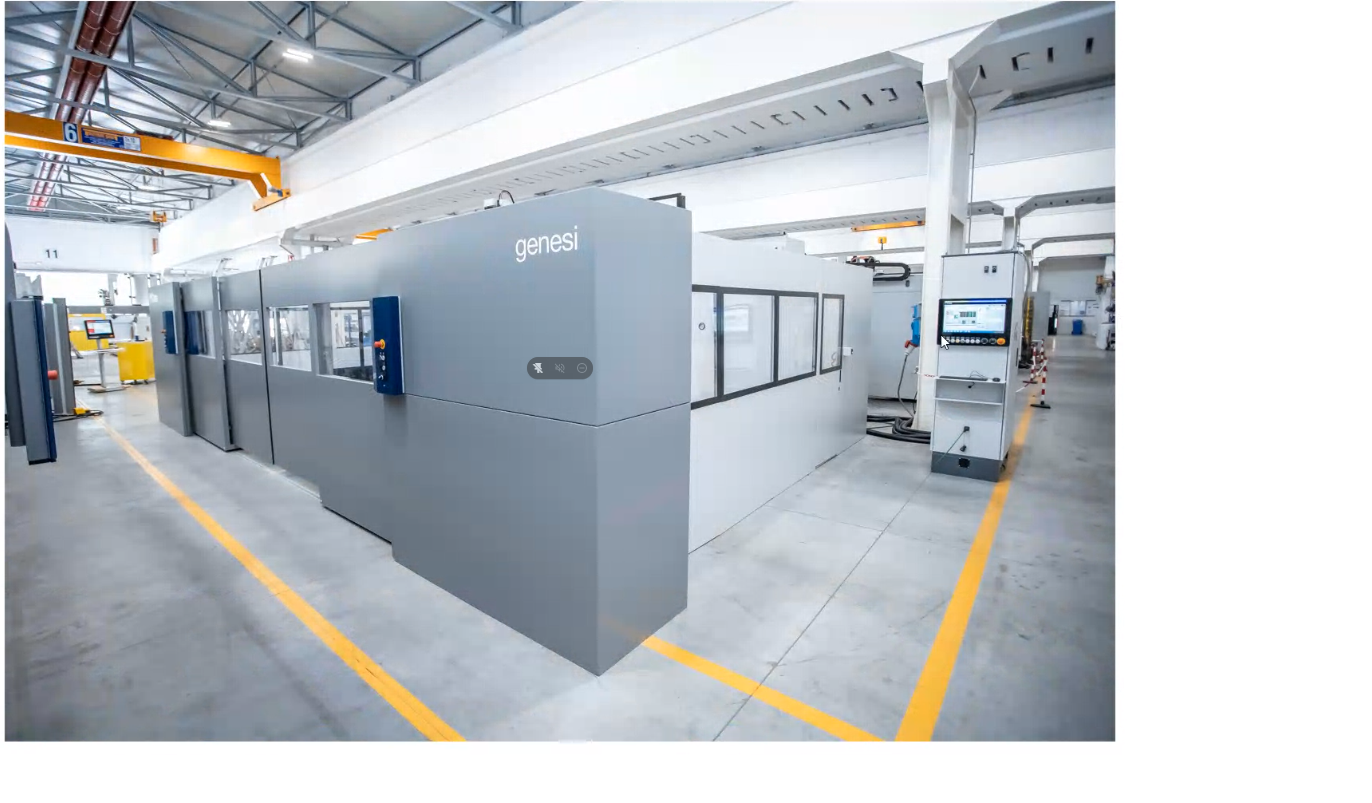

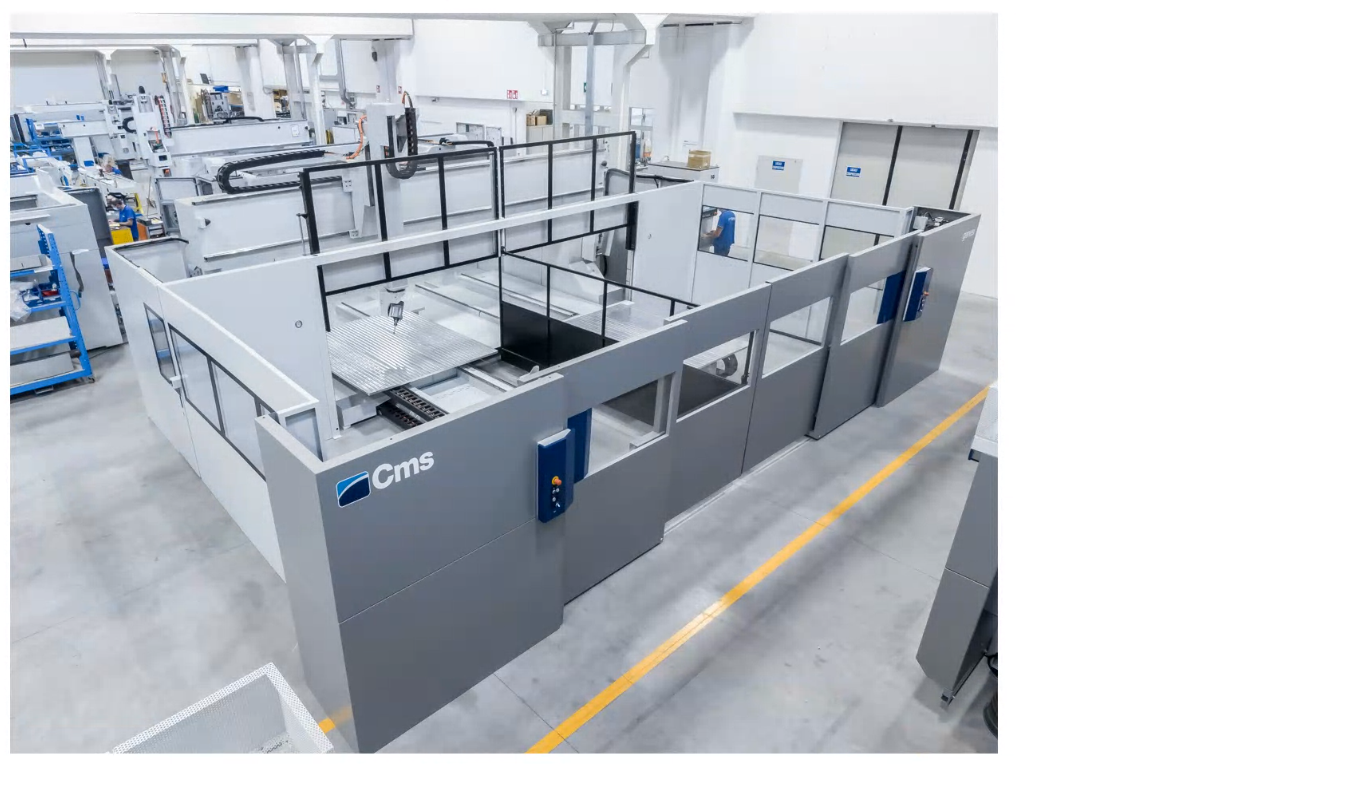

CMS GENESI
5-axis CNC machining center for high speed machining

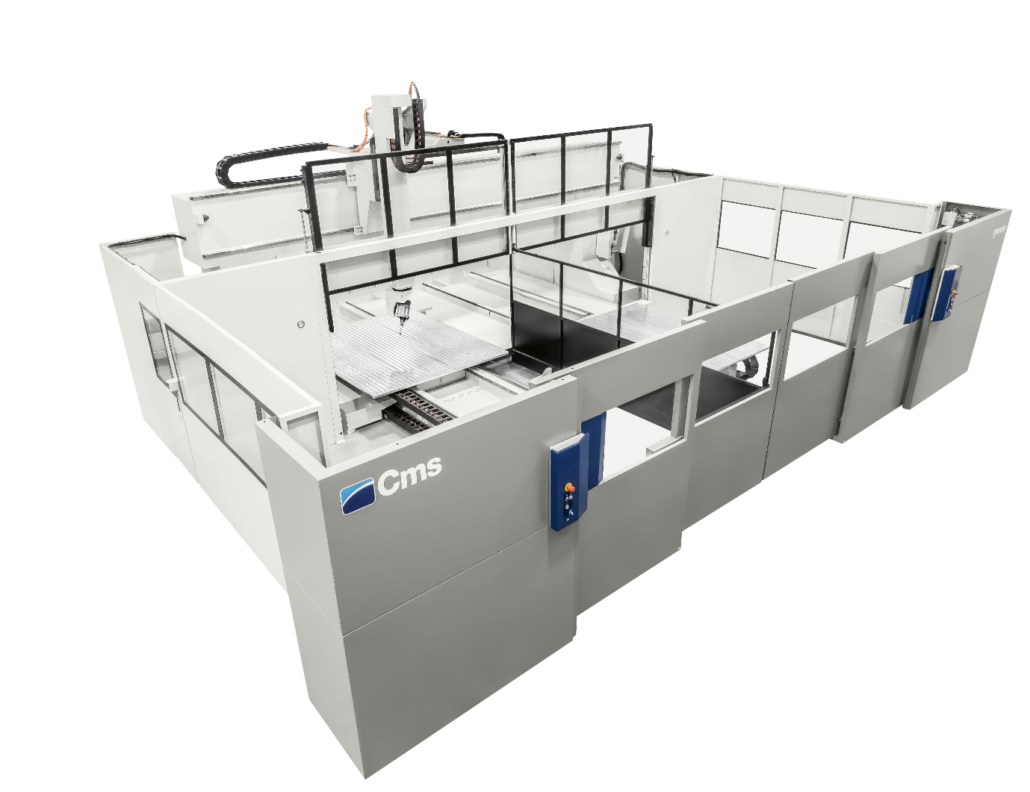

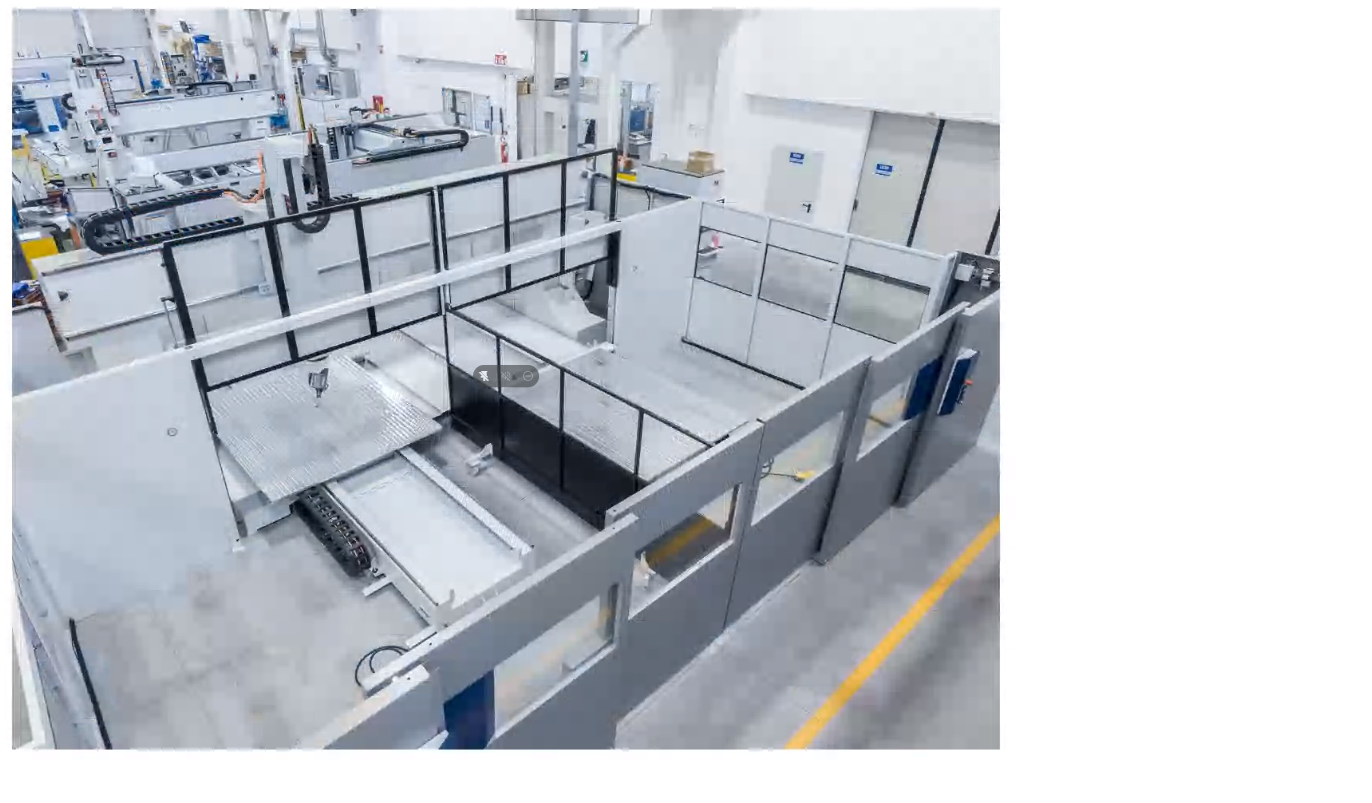

Machining center with fixed bridge and moving plates specifically designed for high-speed processing of plastics and composite materials, capable of offering exceptional movement dynamics to ensure high productivity even when dealing with large sized parts. The advanced structural design guarantees a reduction of the vibrations generated by the processing and a great finish quality.
- Large working areas for the greatest productivity freedom even in the case of high-drawing thermoformed parts.
- Working areas can be configured in a wide range of ways (pendular cycle or single zone with coupled plates).
- The design aimed at optimizing the number of machine components, obtained thanks to the most advanced design systems combined with the experience of CMS, guarantees reduced recommissioning times despite the abundant working dimensions of the machine.
- Smart4Cut programming system dedicated to the optimized generation of the trimming path. Based on interactive software and portable keyboard with joystick and touch screen for the management of all CNC functions. It allows the creation of the cutting program starting from the 3D model or directly from the sample piece mounted on the machine, it automatically eliminates all unnecessary movements, minimizing the cycle time
Advantages
REDUCTION IN CYCLE TIME RESPONSIVENESS AND SPEED WHERE AND WHEN NEEDED
Dedicated dynamics, during both acceleration and braking, for all cutting cycle phases.
13% reduction in comprehensive machining times due to shorter repositioning spaces required between one phase and the next.
FASTER PROGRAMMING AND CONTOURING

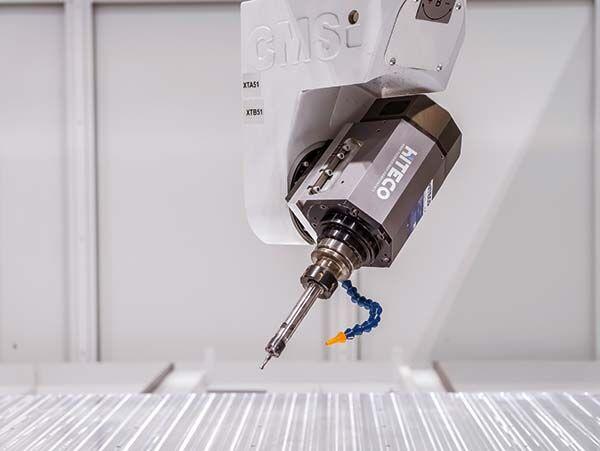

Reduced programming and contouring times: Avoids repositioning thanks to the CX5 operating unit, the operating unit with the most extended rotating axis in the XY plane on the market. 15% reduction in cutting and programming times for contouring cuts.
OPTIMIZATION AND USE OF WORK VOLUMES ALSO FOR HIGH-DRAWING PARTS

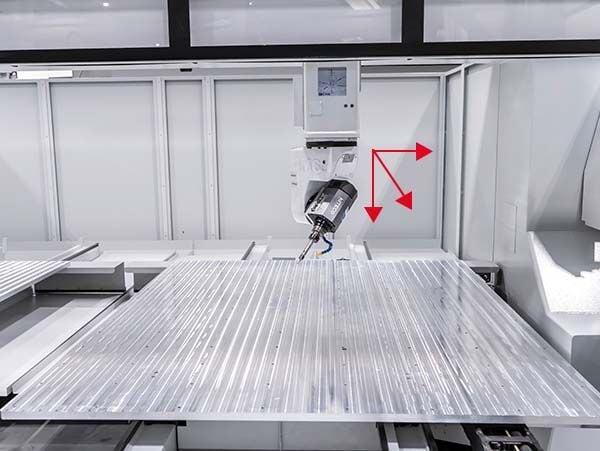

The rigid structure of the fixed bridge in a single block allows a great vertical excursion of the operating unit, guaranteeing minimum space requirements and, at all times, the best accuracy and cutting tolerances.

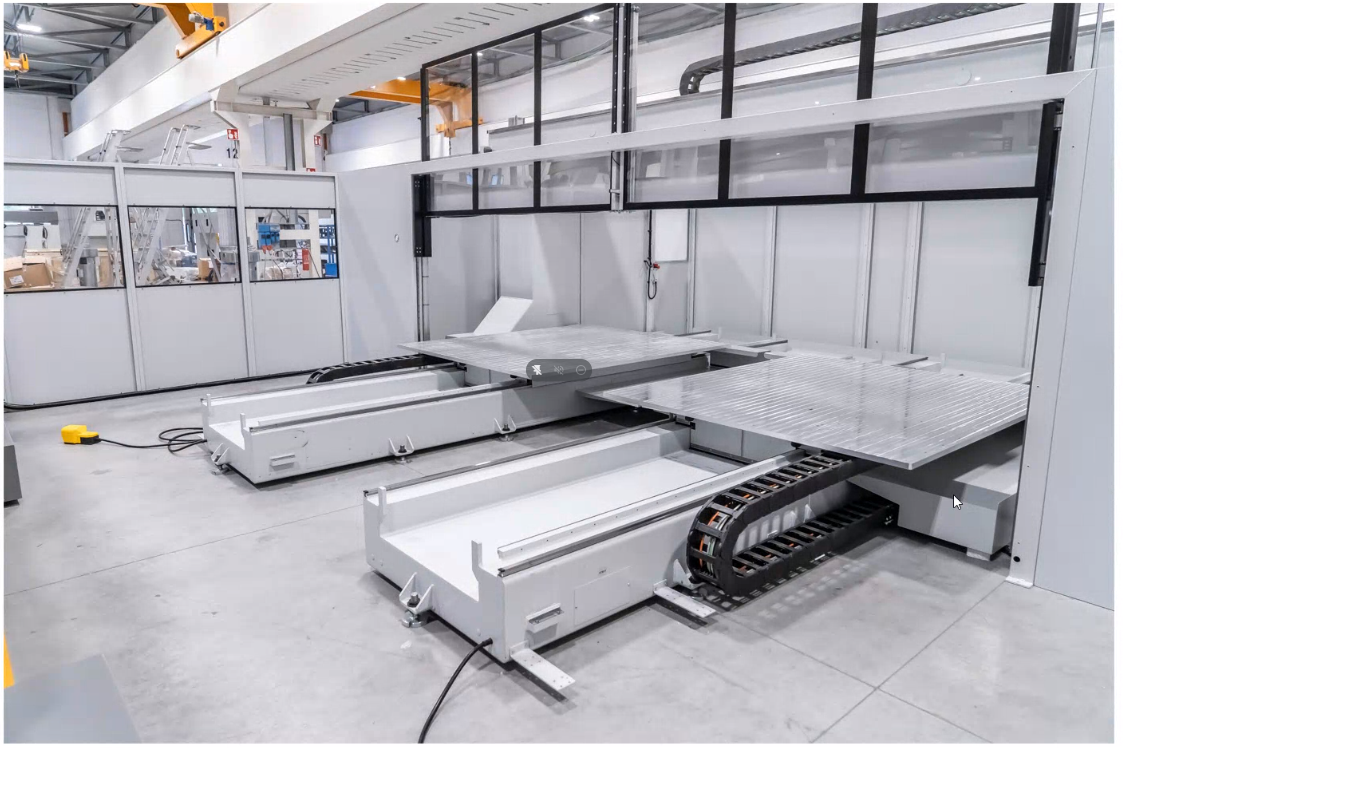

17% REDUCTION OF THE MACHINING TIME THANKS ALSO TO THE MOBILE WORKING PLATES

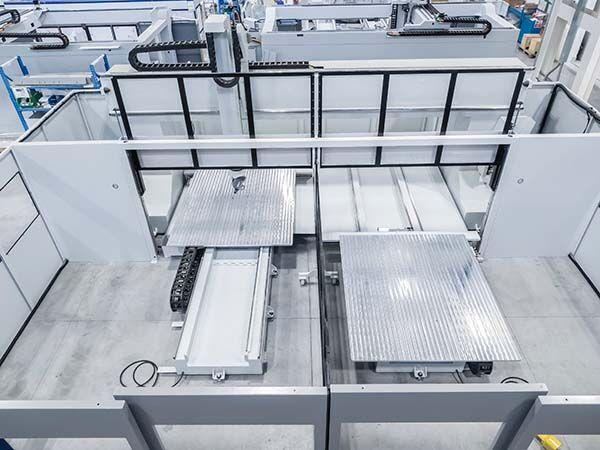

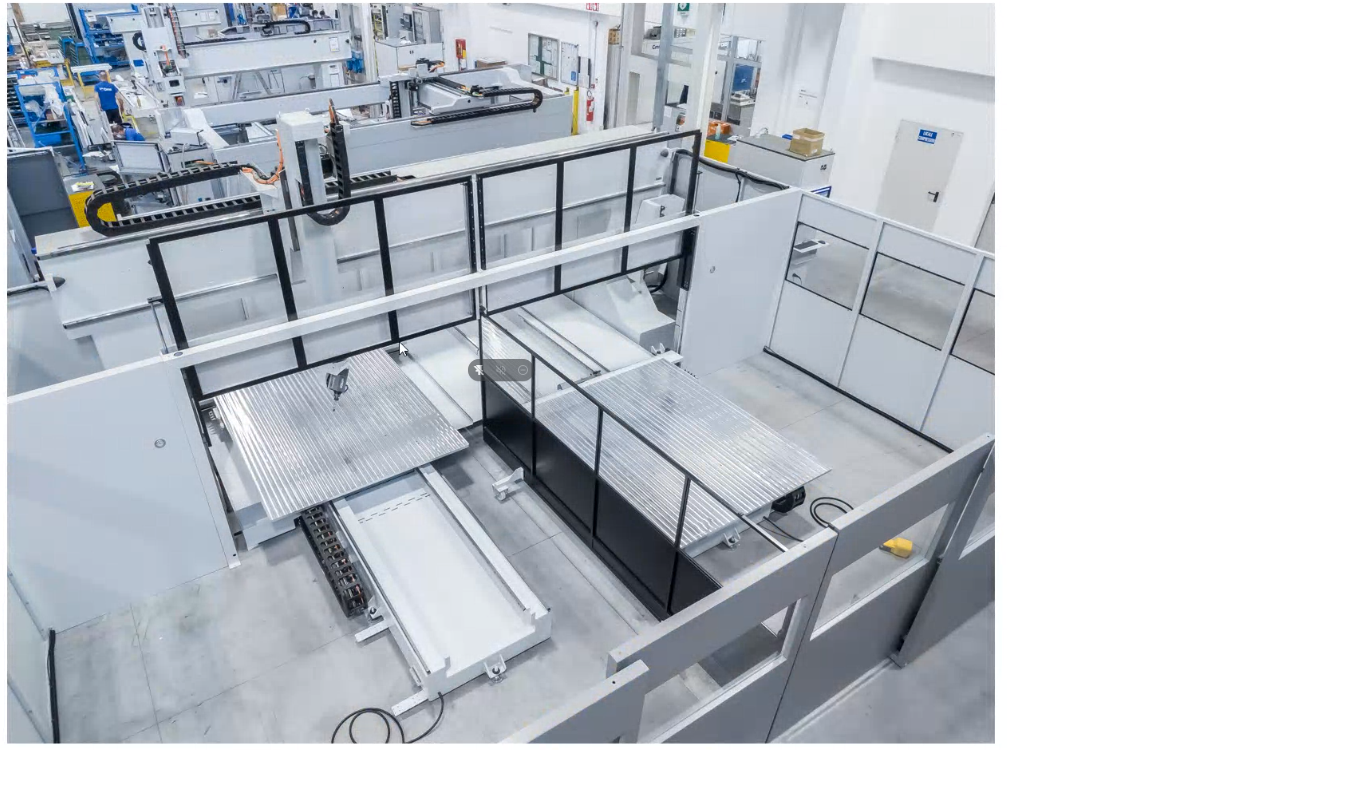

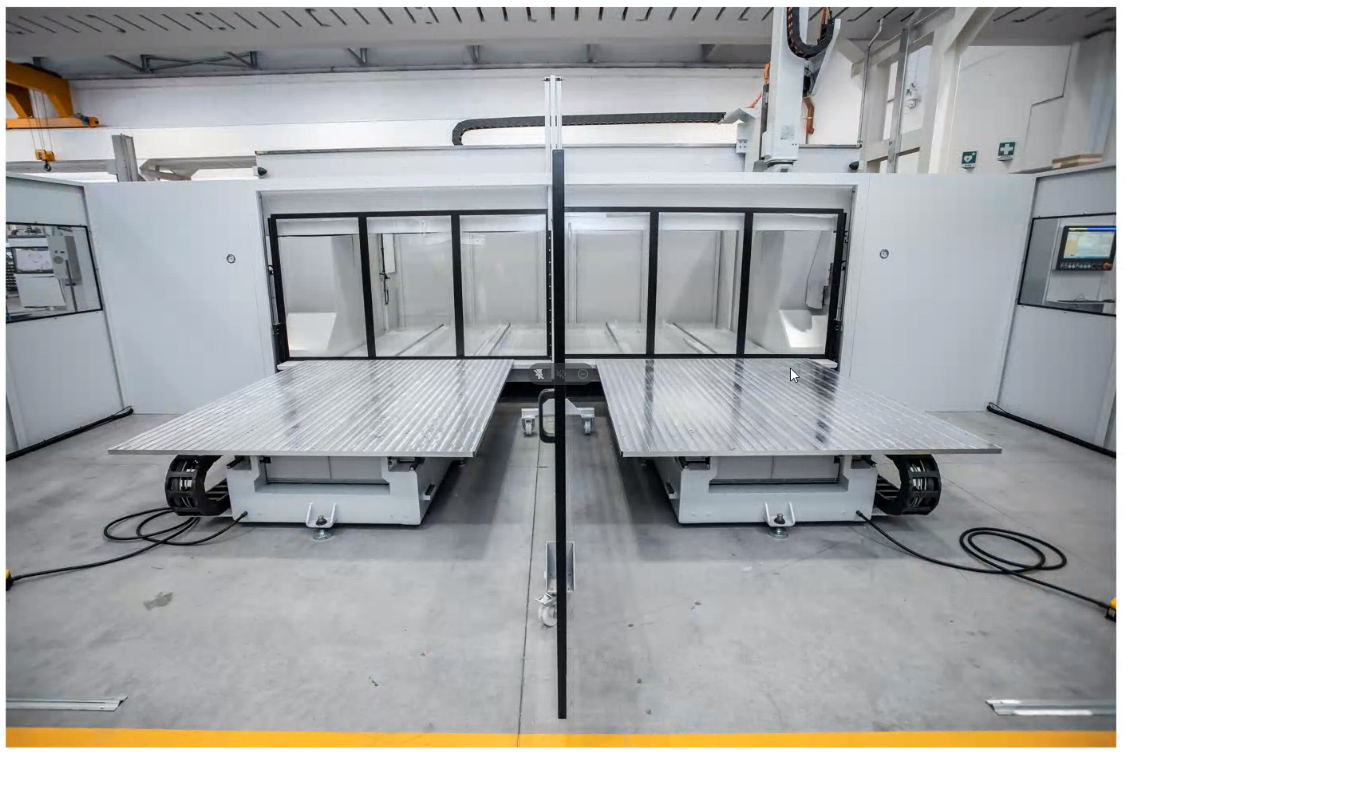

17% reduction of the overall machining time also thanks to the mobile working plates characterized by the highest performances in the market both in the repositioning and interpolation phases. The mobile plates, which can be used in a pendular cycle or in a single zone with coupled plates, allow the cutting of pieces up to 6 meters wide, guaranteeing external dimensions as close as possible to the working strokes.

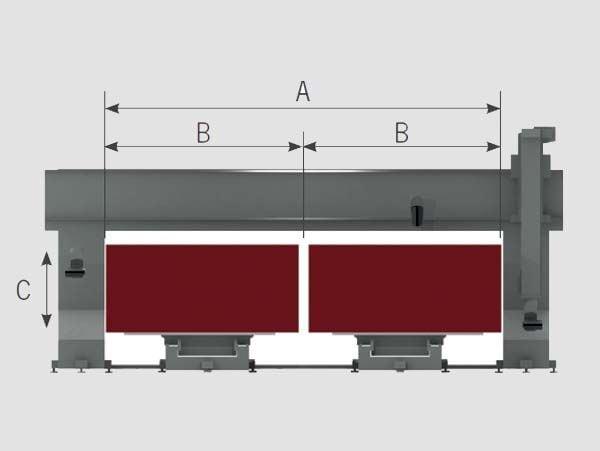

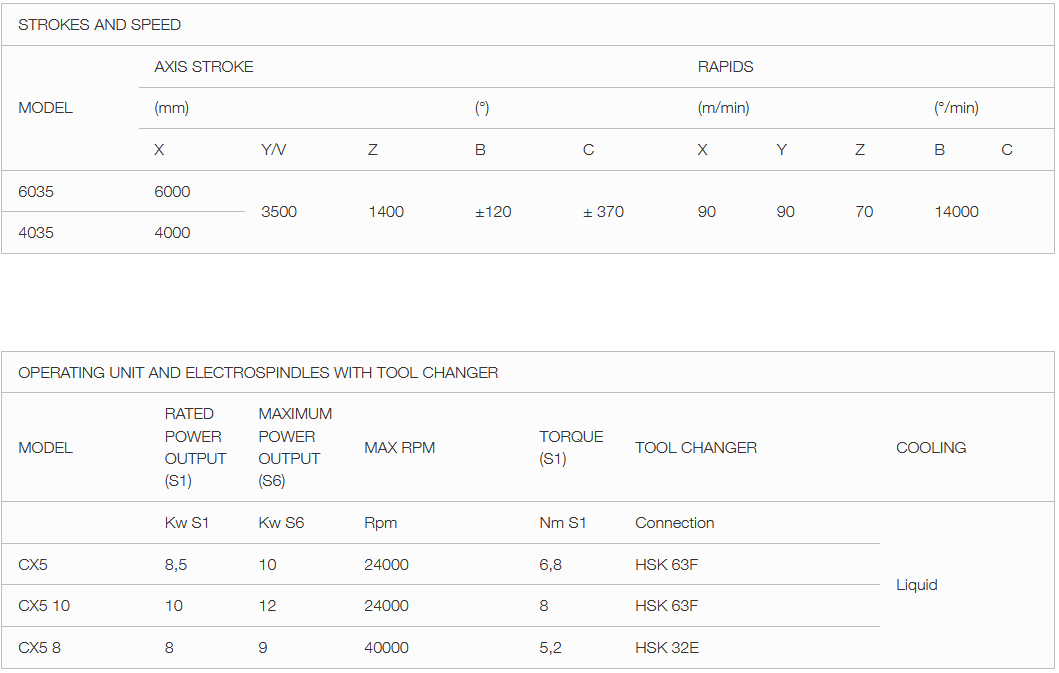

Technical Data
