CMS MX5

3 and 5-axis high speed open frame machining centers

High Speed Machining centers with moving bridge: this configuration makes it possible to obtain large work areas while maintaining maximum rigidity and dynamic. The open frame design offers total accessibility to the work area, even for loading and unloading of parts with large dimensions.
The characteristics of robustness and reliability, typical of CMS machines, are associated with high levels of security, precision, speed and ease of use in the execution of any type of milling, shaping, finishing, drilling and 3D machining, utilizing up to 5 simultaneously interpolated axes.

mx is available also with monobloc structure (MB) or guides on ground (GT – Ground Rail).

Advantages

THE RIGHT SIZE

The 5-axis version of MX5 covers a wide range of configurations. More than 80 sizes, configurable according to your needs. Possibility to use high performance spindles with power up to 32 kW. Best in class for price/performance ratio.

THE IDEAL ENVIRONMENT FOR SAFE PRODUCTION
In Open Frame configuration, MX5 can also be equipped with built-in bellows cover and suction inlets to maintain a clean and safe environment..

100% TAILOR MADE
MX-GT. The GT version is characterized by easy access on all sides of the machining centre, allowing workpiece loading/unloading even on the longer side of large workpieces. CMS also develops clamping solutions to suit your specific needs.

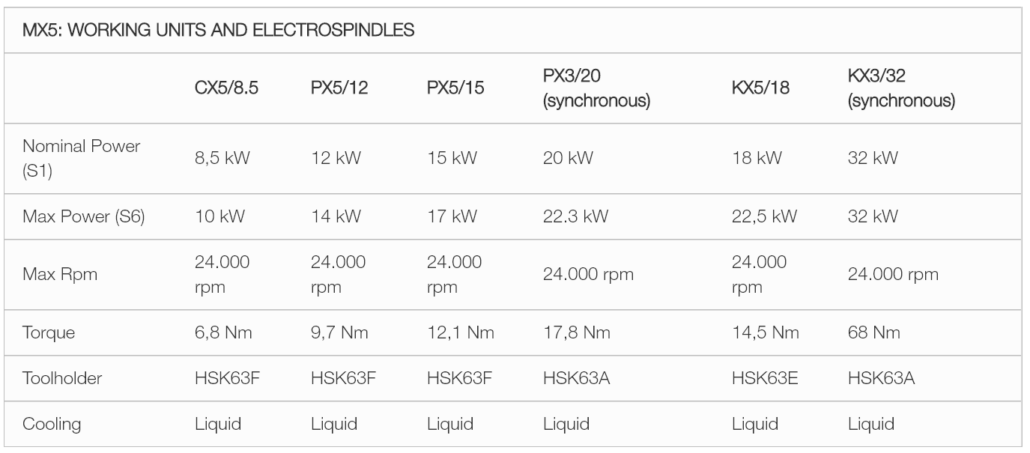

Technical Data
