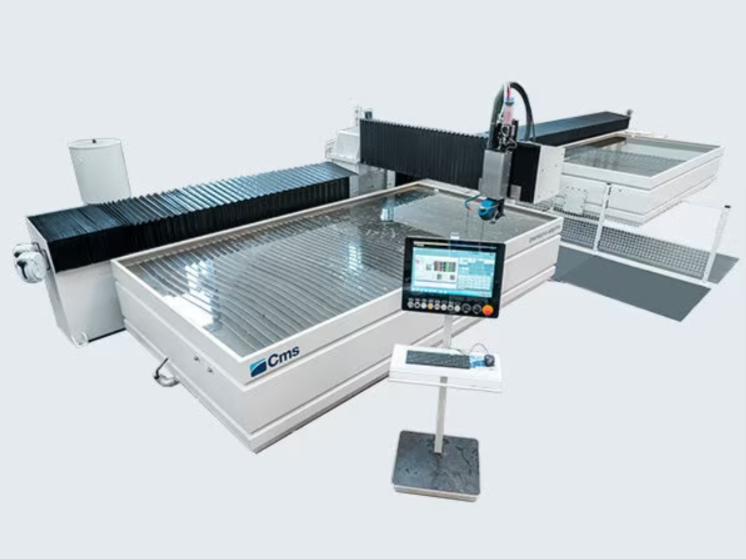

Tecnocut Easyline

3- and 5-axis water jet cutting system

Tecnocut Easyline is a high-performance, versatile, modular water jet cutting system – either pure or hydroabrasive – which can be employed in a number of application fields for the most diverse production demands.

• The cantilever structure, with a separate tank, allows an easy access to the worktable. Loading and removing material is quick and easy.


• All axes’ motions are carried out through hardened and ground rack and pinion.


• The thermowelded bellows provide complete protection of the guides and the rack from water and dust.


• The steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion.


• The tank is set up for the installation of a dredge system for the abrasive removal

Advantages

EASY OPERATIONS: ACCESS OF WORKTOP FROM 3 SIDES
Excellent access to the cutting area, the cantylever structure with separate catch tank offers easy access on 3 sides to load and unload the material.

EASY MAINTENANCE: 91% LESS COST FOR EXHAUSTED ABRASIVE REMOVAL
The catch tank with special anti-rust ceramic painting is designed to fit the new Evo4 chain dredge for exhausted abrasive removal even later after installation, with 91%* less maintenance costs.

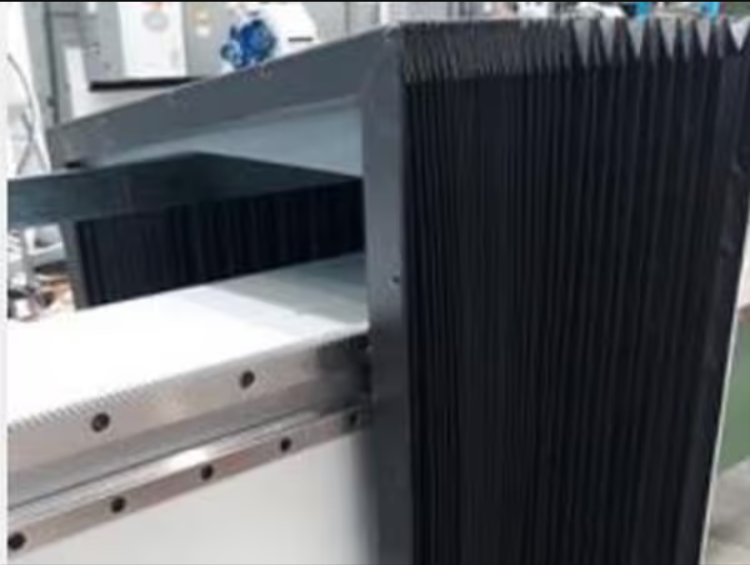

EASY SEALING: SAFE PROTECTION FROM DUST AND WATER
The heat-sealed bellows provide complete protection of linear guides and racks from dust and water during the cutting, guaranteeing long lifetime without affecting the cutting quality.

UP TO 55% MORE PRODUCTIVITY
The versatility of waterjet to cut a wide range of materials, with custom solutions to increase th productivity up to 55%, like single or double tank pendulum cycle or the multiple cutting heads configuration.

Technical Data

* Other sizes available on request
