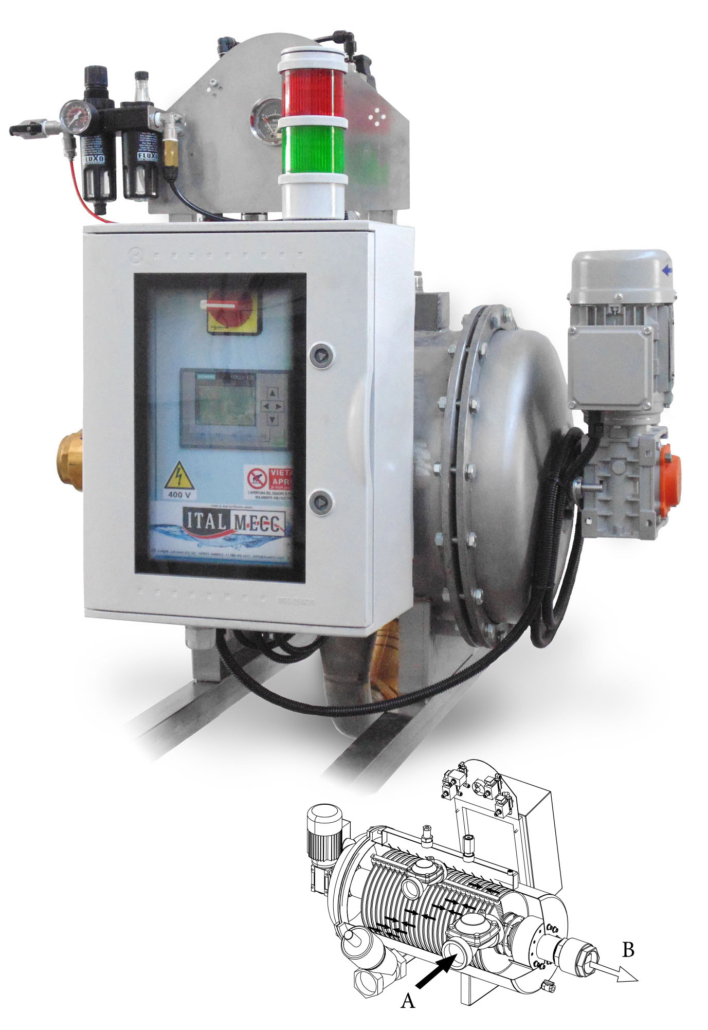

Automatic CNC Filter

The CNC Filter is installed just after the Boosting pump group. Its task is to perfectly filter the clarified water released from the Silo water clarifier in a controlled mode.

CNC machines spindle lubrification has become a crucial point in the last years. These spindles, normally requires a water depuration level difficult to obtain with a standard filtration system (from a Silo or filter-presses).

The Italmecc BluWater CNC filter is the solution. Thanks to its patented self-cleaning system, it can easily feed up to 3 to 4 CNCs simultaneously.

The depuration level released is at 25µ (we can go down at 3µ if requested) of filtered water. Thanks to this smart application there is no necessity to further filter the clear water by using a filter-press (a slow process in comparison). This way you save space and reduce plant complexity.

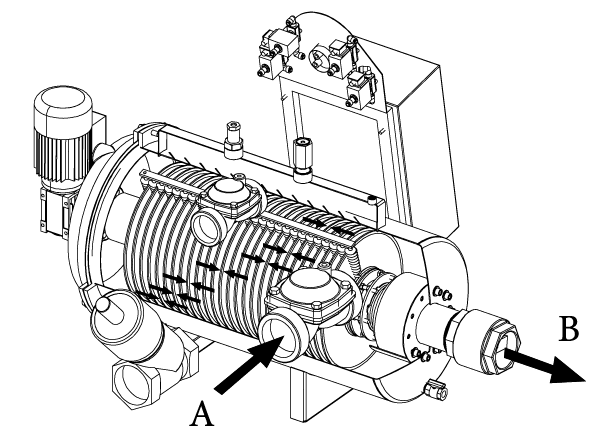

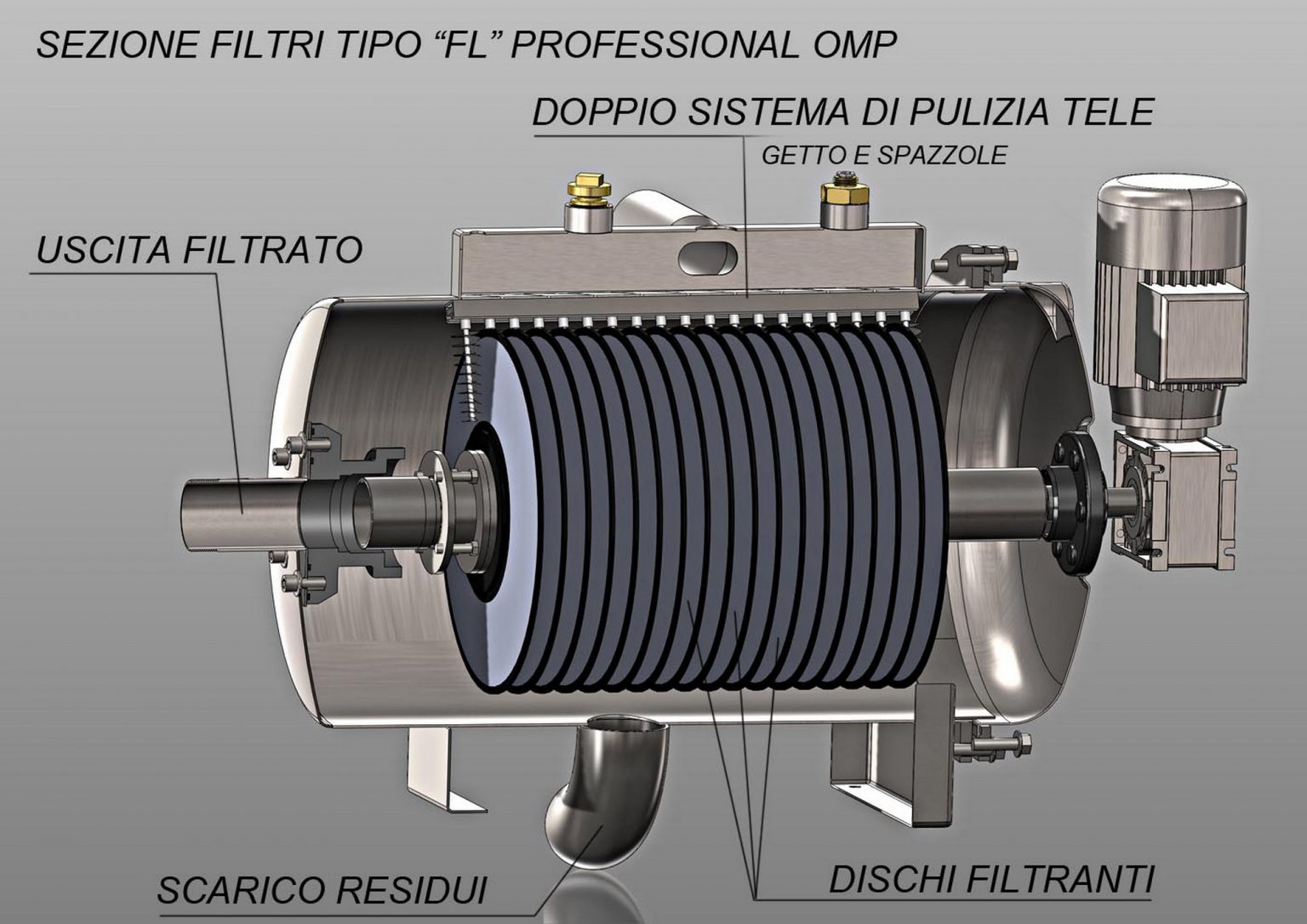

Specifically, the CNC filter separates the liquids and solids using a series of rotary filtration discs, wherein the clarified water pumped into the filter body will supply all the machinery, protecting their Spindles from the abrasion.

Our filter is specifically designed based on the volume and type of water that needs to be perfectly filtered.

Self-cleaning filter


  • Elimination of the expensive spare cartridges
  • Consequently saving of time for the replacement of the cartridges
  • Automatic Self-cleaning system
  • PLC controlled system (Full Automatic and/or Manual driven)
  • Just One filter to feed up to 4 machines simultaneously
  • Filtering capacity degree up to 1 micron (1 µm) – Patented
  • It protects spindles and all the equipment in contact with water from the abrasion;
  • It reduces the limestone deposits.

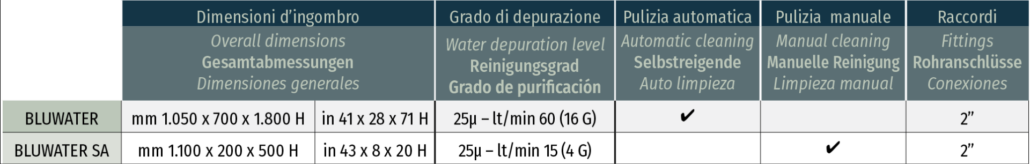

Technical Data
