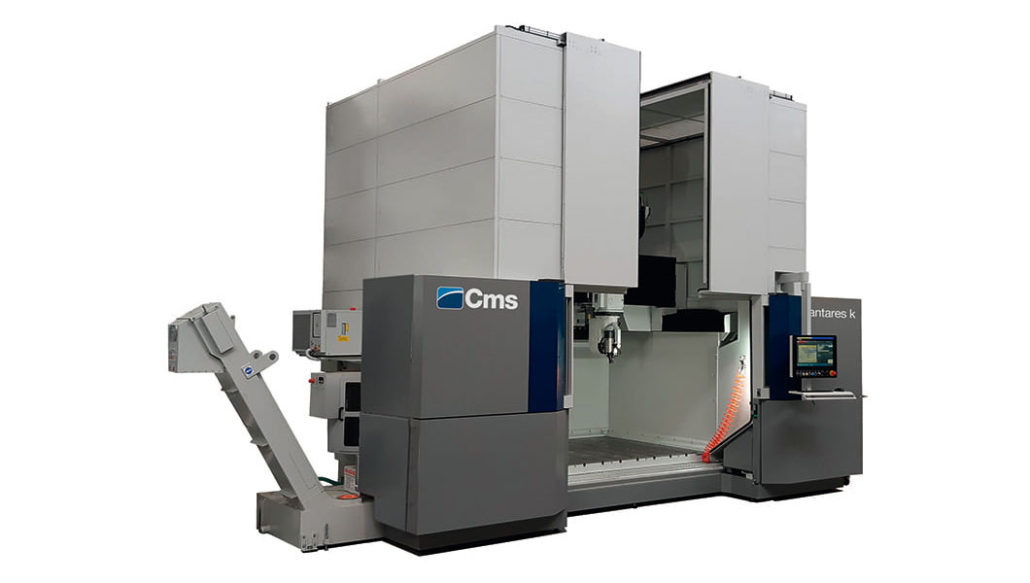

CMS Antares K
High speed 5-axis CNC machining center with monobloc structure and flood coolant system
antares k is a monobloc machine, specifically designed for flood coolant applications.
- monolithic structure
- flood coolant system
- integrated chip conveyor and filtering unit complete with high pressure pump
- steel table with T-slots
- large safety windows in laminated safety glass (impact resistant polycarbonate on the outside, hardened glass on the inside for chip resistance)
- roller-type guides
- full enclosure roof with pneumatic opening for crane loading/unloading
Advantages
THE POWER OF WATER
antares k is the only machine in its category designed with a built-in lubrication and cooling system for the machining of aluminium parts. Each component of the machining centre is specifically designed for this function: from the sealed base with built-in steel table, to the layered safety windows, to the evacuation system. Each detail is designed and integrated to ensure uncompromising performance.
FLEXIBLITY THAT COUNTS
The compact dimensions, with overall dimensions that are up to 11% smaller in its class, allow an easy and cost-effective installation in any production context; at the same time the wide working volume available does not limit the size of the workpieces.
THE MACHINING CENTER THAT CAN CHANGE YOUR COMPANY
antares k is the solution with the best ratio between investment and productivity in the industry. The technical solutions adopted, such as the synchronous NC-controlled electrospindle for high torque already at low rpm, the effective power of 20 kW (S1-100%), the lubrication and cooling system, the monobloc structure with recirculating roller guides, the high axis accelerations, make it possible to obtain a removal volume in aluminium machining that is 33% higher than the average of the category.

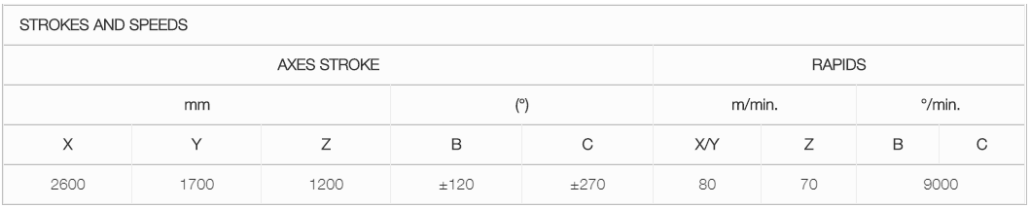

Technical Data
