CMS Brembana g-rex

5/6 interpolated axes machining center

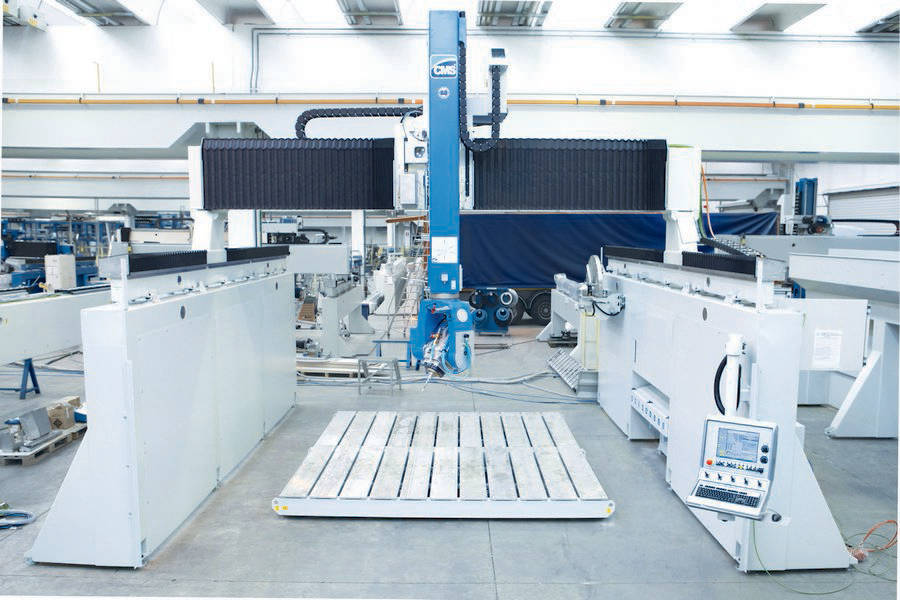

brembana g-rex is a Numerically Controlled Machining Center with five/six interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic. It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, writing, and blade working. This machine can be customized to the customer’s needs and it’s especially designed for fabshops involved in architectural projects and in building industry in general.

brembana g-rex is also available with:

solution to work in a pendular cycle: the front area works as a cnc center and the back area works as a bridge saw, with automatic stations for tool and disk change
solution for an integrated line to work slabs equipped as: automatic loading, cutting area, contouring area and storage

Advantages

+43% STIFFNESS ON ROTARY AXES

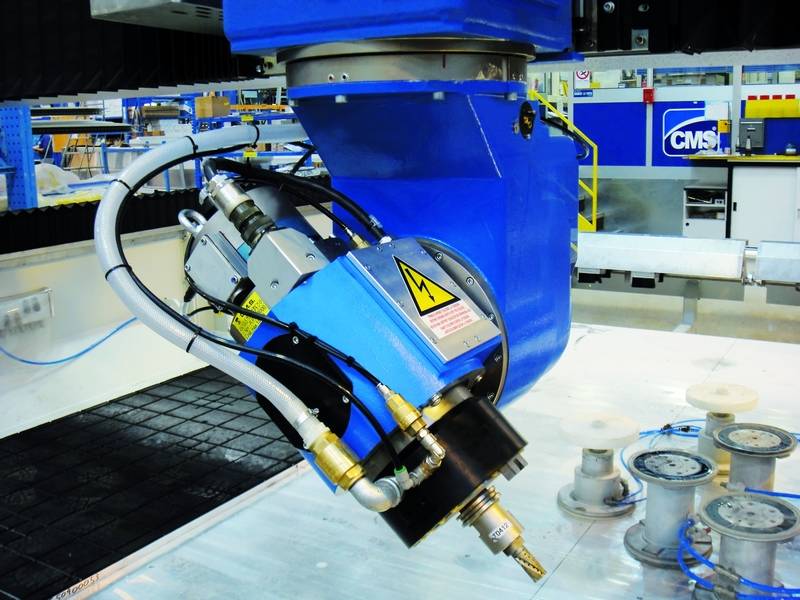

Pneumatic brakes on B and C axes guarantee maximum stiffness to achieve superior performance and quality.

QUALITY WITHOUT COMPROMISE
Tool wear control system, which enables the automatic adjustment of the tool position, ensuring top quality finishing.

MAXIMUM FREEDOM FOR YOUR PROJECTS
Z-axis stroke up to 2000 mm for ultra-thick workpiece machining.

THE BEST SOLUTION FOR BLOCK MACHINING

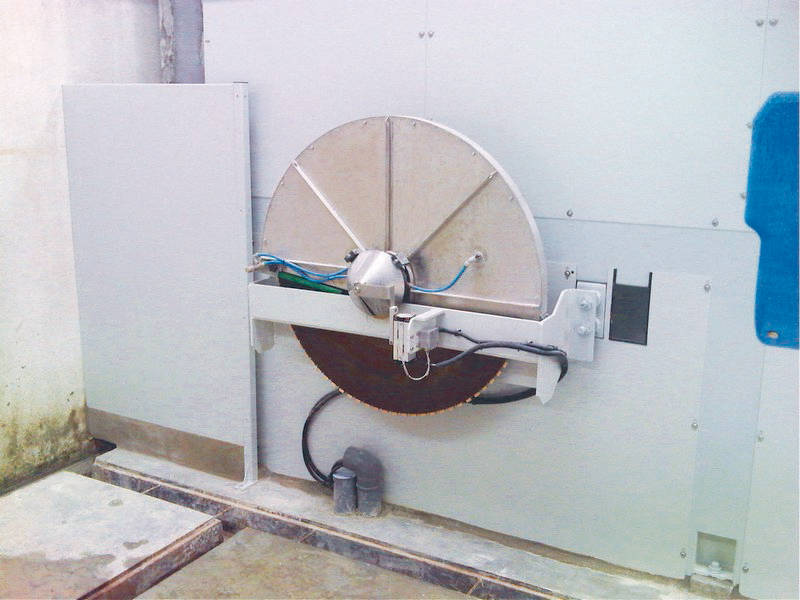

Its extraordinary stability allows to install disks with a diameter up to 1.200 mm.
