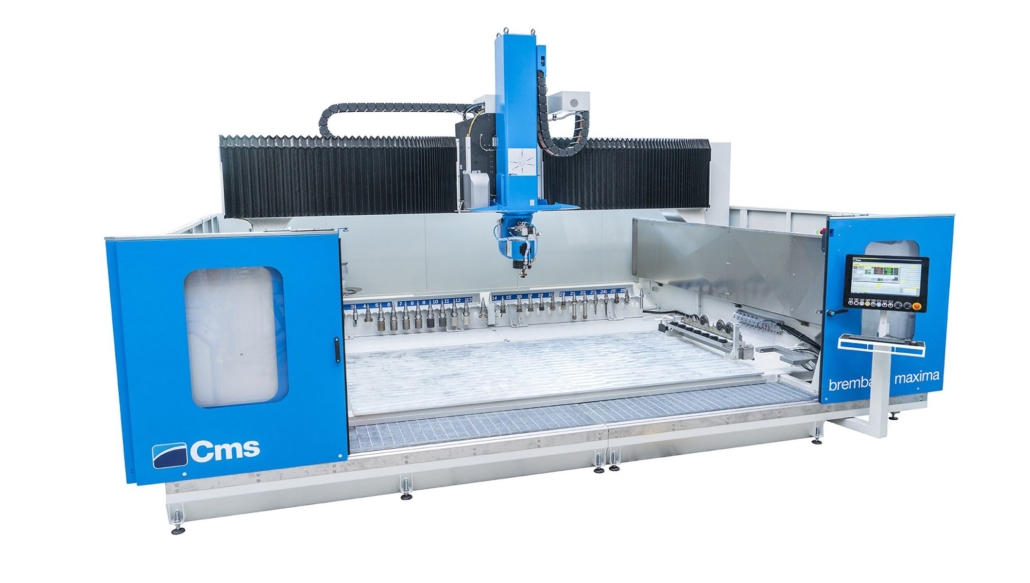

CMS Brembana maxima

5/6 interpolated axes machining center

brembana maxima is a Numerically Controlled Machining Center with five/six interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic.
It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, and writing.
This machine can be customized to the customer’s needs and is a state-of-the-art representation of 5-axis machining.

brembana maxima is also available with:

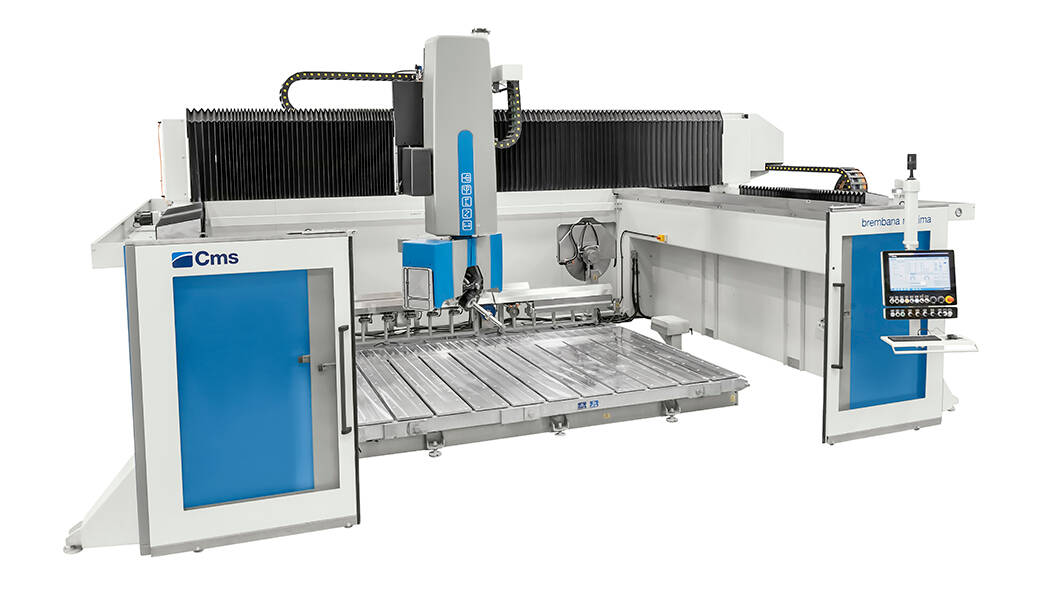

  • concrete or carpentry shoulders (Open Frame)
  • electrospindle with HSK attach and customized covers to meet all the customer’s needs
  • rotating table: it eases loading and unloading operations. This is the ideal machine for a customer looking for high productivity

Advantages

POWER AT THE TOP OF THE CATEGORY
The electrospindle is CMS technology, liquid-cooled and with power up to 30 kW, which guarantees ideal operating conditions and up to 21% savings on cycle times.

UNRIVALLED MECHANICS
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance.

QUALITY WITHOUT COMPROMISE
Tool wear control system, which enables the automatic adjustment of the tool position, ensuring top quality finishing.

NO LIMITS ON TOOL CRIB THANKS TO CMS SOLUTIONS
Up to 120 tools can be installed on the in-line or revolving or under bridge tool rack, which cover all fabshop needs without re-equipping the machine each time.

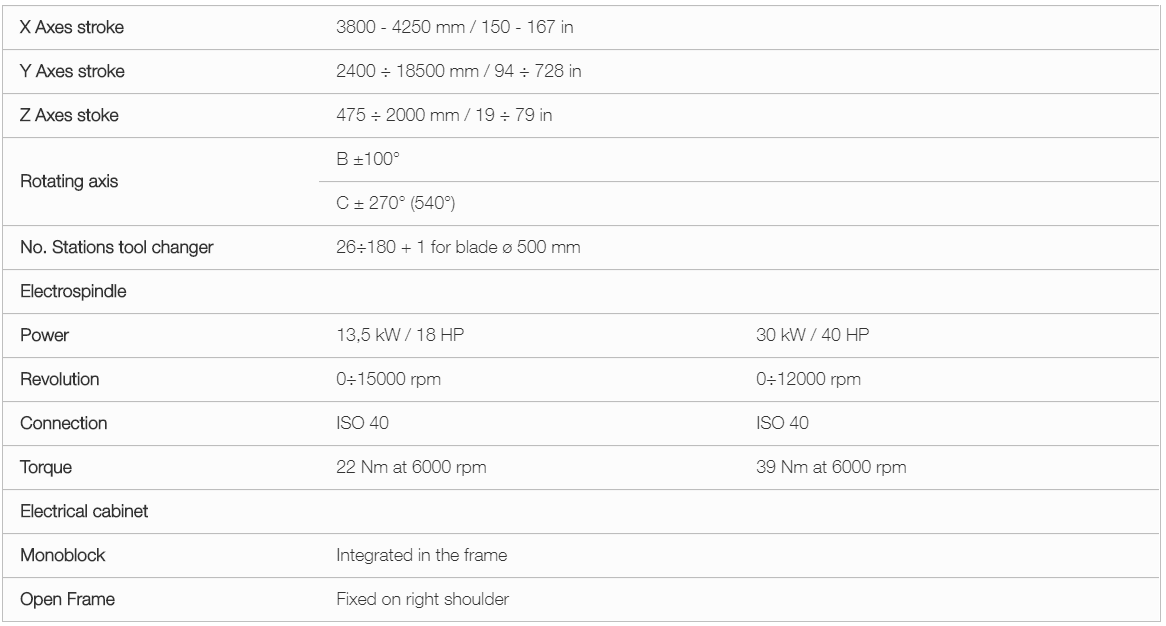

Technical Data
