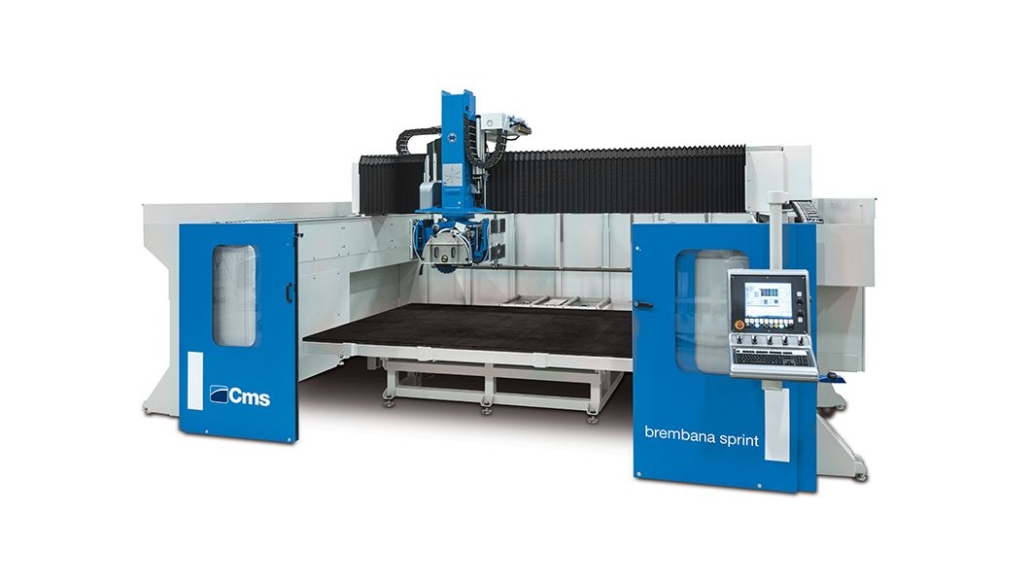

CMS Brembana sprint

CNC 5-axis bridge saw

Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table to carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on slabs and stone blocks. This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces. The 4.250 mm stroke of the bridge guarantees easy machining of large sized slabs or stone blocks.
This machine can be very customized, it is the best solution for large sized fabshop with high productivity of:

  • kitchen countertops
  • vanity tops
  • wall panels for interiors and exteriors
  • flooring
  • doorsteps, staircases and thresholds
  • street furniture

Brembana sprint is also available with the following configurations:

  • cutting line equipped with a belt working table (BT)
  • cutting line equipped with a motorized roller working table (RS)
  • pendular machining
  • with an automatic unloading system of the pieces

Advantages

UNRIVALLED MECHANICS
Open frame version, to install on concrete or carpentry shoulders to guarantee stability and rigidity to make the most difficult processing and to ensure long lasting.

MOTION ACCURACY
As a guarantee of quality all movements are powered by brushless motors coupled with a precision reduction gear and transmitted through a rectified and tempered guides and ball bearings.

LIMITLESS TECHNOLOGY
The machine can be equipped with a powerful ISO 50 electrospindle which, together with the 5 interpolated axes, transform the machine into a modern and complete 5-axis machining center.

+33% PRODUCTIVITY WITHOUT MANUAL MOVEMENTS
Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the cutting of the slab and reduce processing waste.

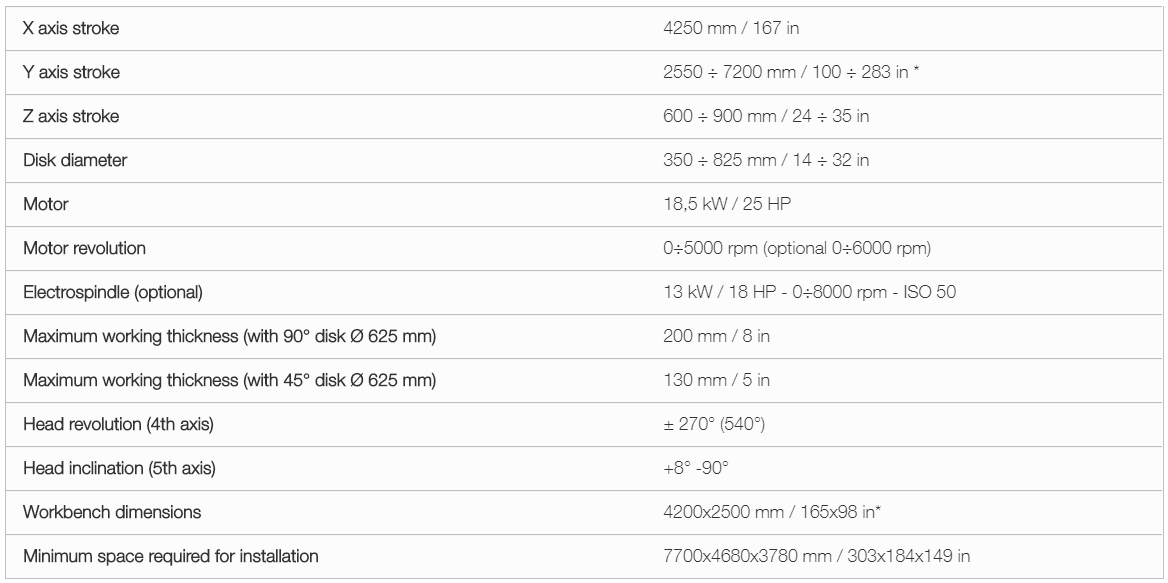

Technical Data

* Other sizes available on request
