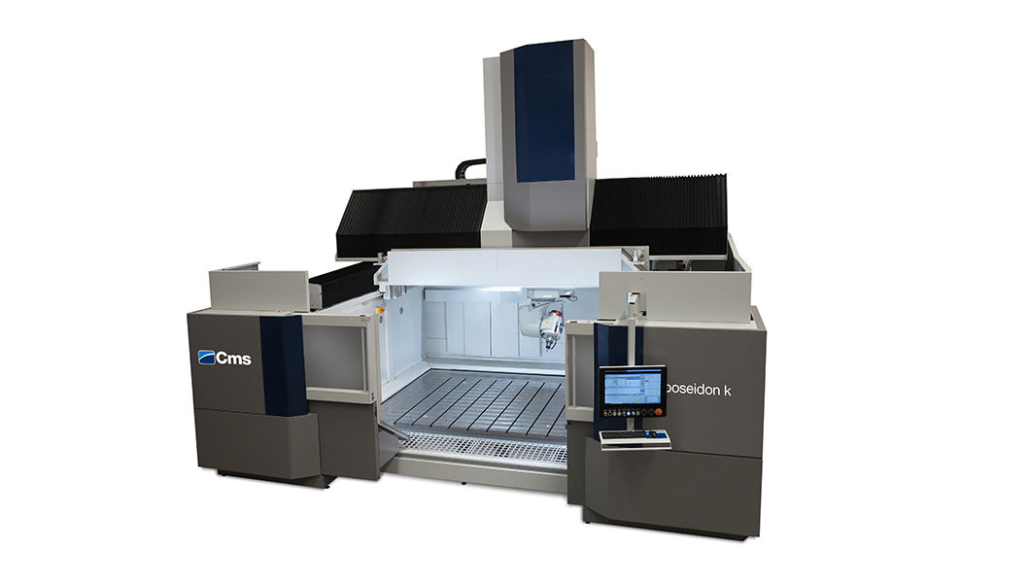

CMS Poseidon K

5 axes high speed CNC machining center with monobloc structure

This is the most compact machining centre of the series; providing Poseidon’ perfomance levels with the additional advantages of a monobloc system – stability, accuracy and high machining quality – even under the presence of heavy stresses. The compact dimensions allow easy fitting to every productive environment,
whilst providing a large work envelope.

  • mechanical moving parts designed to optimize the power/weight ratio, driven by high-performance motors with high speed and acceleration characteristics
  • high operating power, geometric accuracy and machining reliability
  • maximum accessibility to the working area for an easier loading/unloading, even for heavy parts

Avilable also with rotating table (TR)

Advantages

BETTER AND FASTER
High operating power, geometric precision and reliability even in the most complex machining operations lead to a single result: producing better workpieces more quickly. poseidon k has been designed to adapt to your manufacturing reality and make it even more efficient and competitive.

.POWER AND ACCURACY
poseidon k also features high-performance electrospindles with powers up to 32 kW / S1 and torque up to 100 Nm. Factors like synchronism and controlled axis management allow a particularly favourable torque supply at low rpm and the execution of rigid threads maximizing the machining center productivity (48 sec reduction in the CMS test cycle with a total duration of 625 sec compared to standard electrospindles).

TOOL CHANGE IN A FLASH
poseidon k is equipped with a high speed automatic tool changing system with 48-station chain magazine and exchange lever: all the tools you need in no downtime.

THE POWER OF WATER
poseidon k has been conceived and designed to manage an integrated lubrication and cooling system for the machining of aluminium parts. Each component of the machining centre is specifically designed for this function: from the sealed base with built-in steel table, to the layered safety windows, to the evacuation system. Each detail is designed and integrated to ensure uncompromising performance.

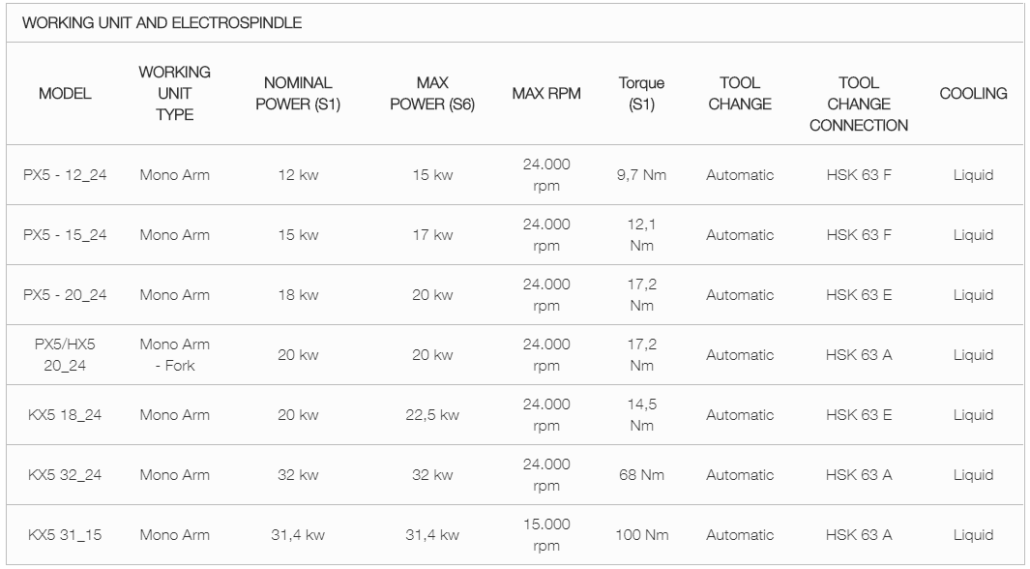

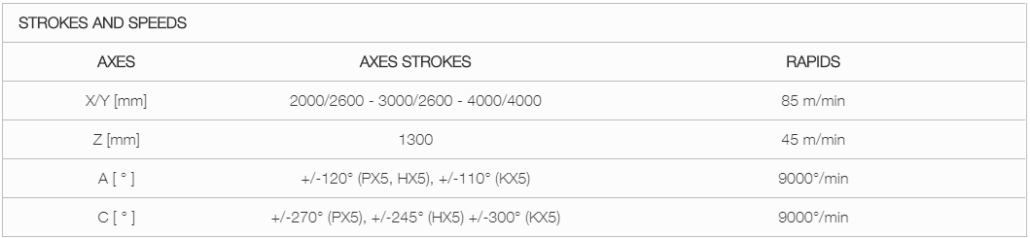

Technical Data
