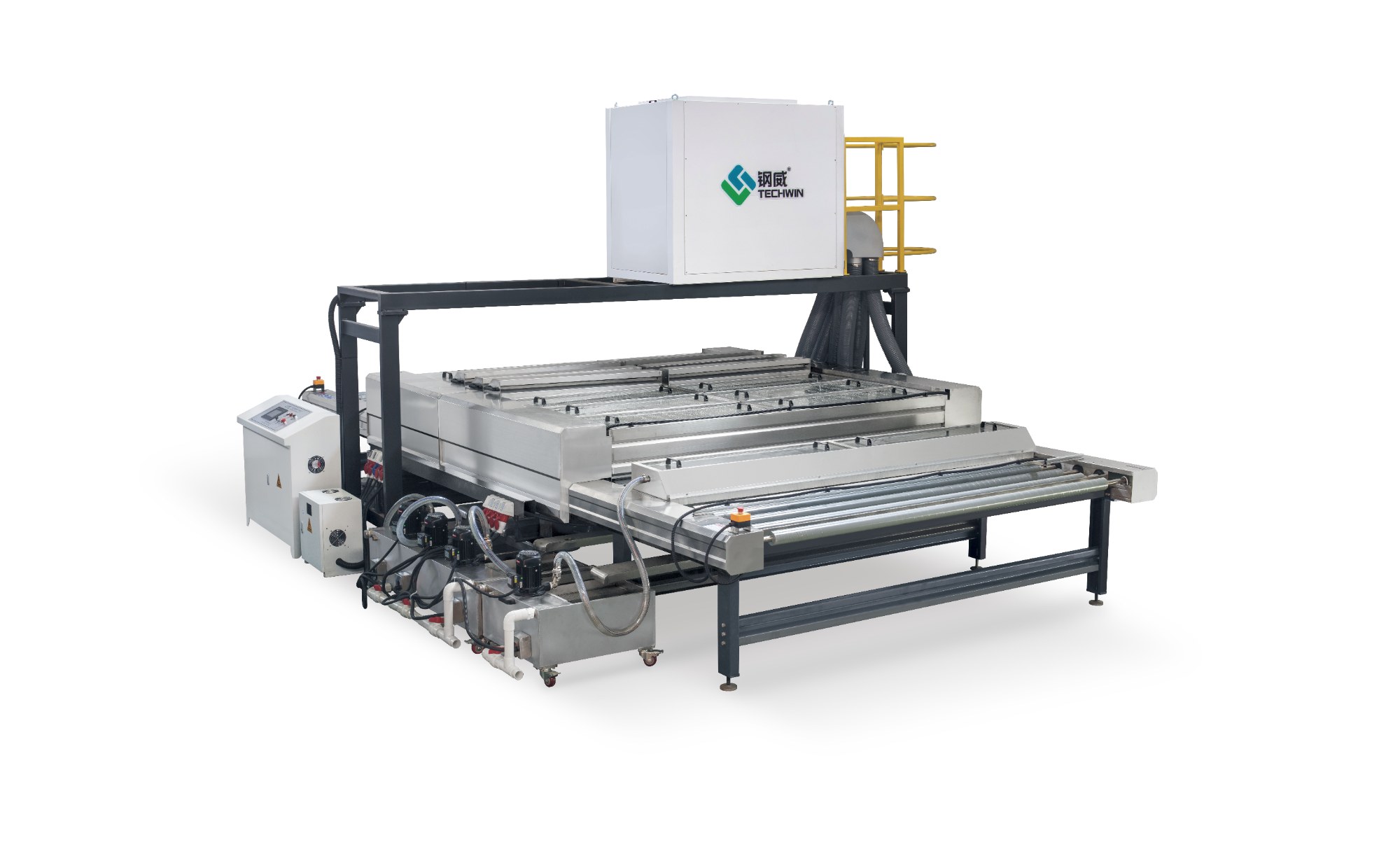

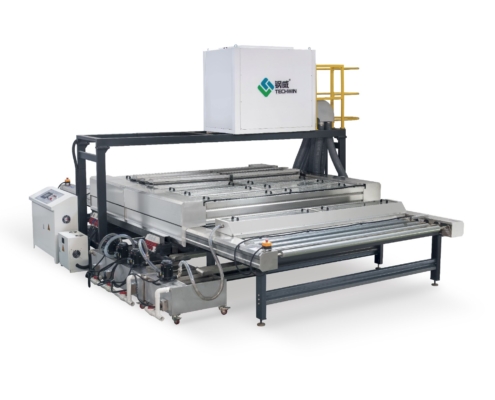

TECHWIN TWQX-2500G-3 HIGH SPEED HORIZONTAL GLASS WASHING MACHINE
A high speed horizontal washing and drying machine for architectural glass up to 2500 mm wide and 3 to 25 mm thick, running at 1 to 16 m/min.
Enquire about Techwin TWQX-2500G-3 High Speed Horizontal Glass Washing Machine
Get the TWQX-2500G-3 spec sheet
The TWQX-2500G-3 is built for architectural glass lines that need consistent cleaning at production speed. Glass passes through a pre-wash, six cylindrical brushes arranged as three upper and three lower, and three pairs of air knives before reaching an LED-lit unloading zone for inspection. It runs as a standalone machine or, with the optional PLC and touch screen, synchronises speed and thickness with the other machines in your line. Techwin is a specialist manufacturer of glass washing machines, and the TWQX-2500G-3 is supplied and supported locally by Innovync.
KEY FEATURES
- Three-Stage Brush Washing: six cylindrical brushes, three upper and three lower, each continually sprayed with water.
- Independent Water Circulation: each brush pair has its own stainless steel tank, pump, filters and heating system, with separation between stages to stop contaminated water crossing over.
- Low-E Glass Compatible: a soft brush with 0.08 mm bristles is available for Low-E glass.
- Low-Noise Drying: three pairs of straight and angled air knives with a high-pressure blower dry the glass surface and edges, with air heating fitted.
- Lift-Up Washing and Drying Section: lifts 350 mm for easy maintenance.

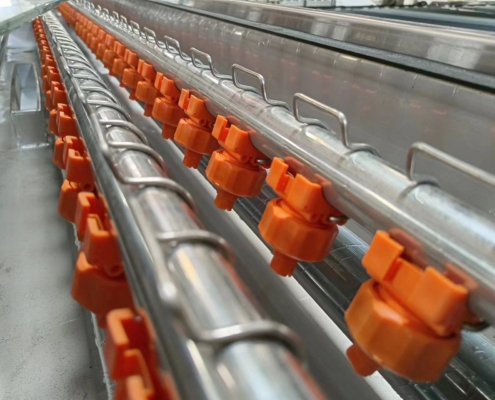

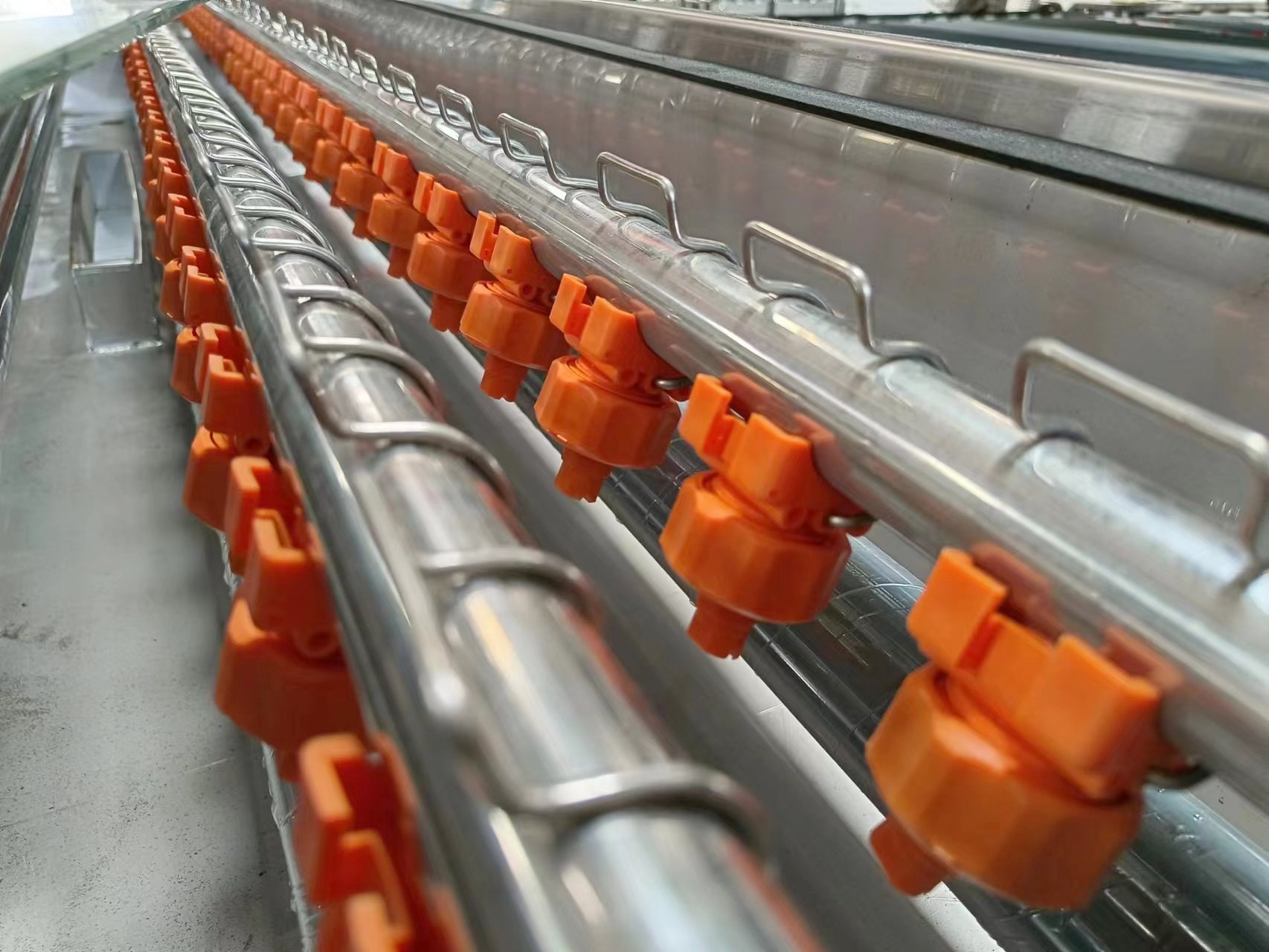

- Easy Daily Maintenance: water tanks sit outside the machine on wheels, with removable filters, quick-release nozzles and transparent top covers for inspection.

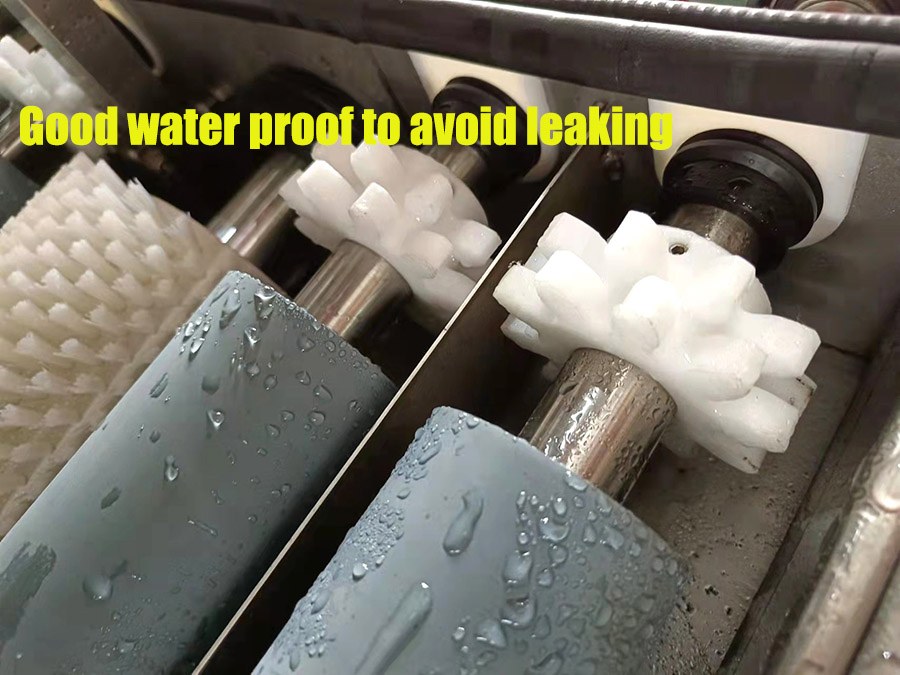

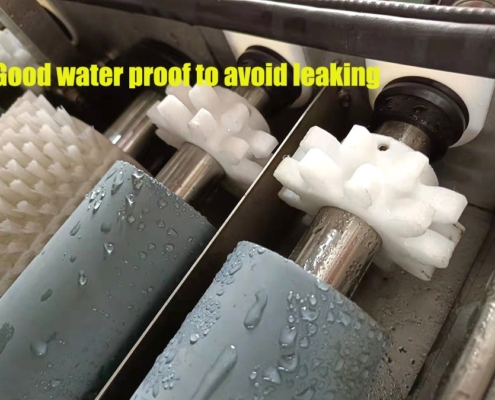

- Stainless Steel Wet Parts: covers, tanks, filters, spraying pipes, brush and roller shaft ends, pans and protection parts in the washing zone are stainless steel.
- Energy-Saving Options: inverter-controlled transmission, with a blower inverter available as an option.
- Line Integration: optional PLC and touch screen synchronise speed and thickness adjustment with other machines in the production line.
APPLICATIONS
- Shower glass
- Windows and doors
- Balcony glass
- Commercial glass
- Other architectural glass up to 2500 mm wide
INDUSTRIES
- Architectural Glass Processing
- Window and Door Manufacturing
- Shower Screen and Balustrade Fabrication
- Commercial Glazing
TECHNICAL SPECIFICATIONS
| SPECIFICATION | TWQX-2500G-3 |
| Max. glass width | 2500 mm |
| Min. glass size | 300 x 400 mm |
| Glass thickness | 3 to 25 mm |
| Working speed | 1 to 16 m/min, adjustable |
| Pre-wash | 1 set of rinsing bars |
| Brushes | 3 pairs |
| Hard brush bristle diameter | 0.25 mm |
| Soft brush bristle diameter | 0.08 mm |

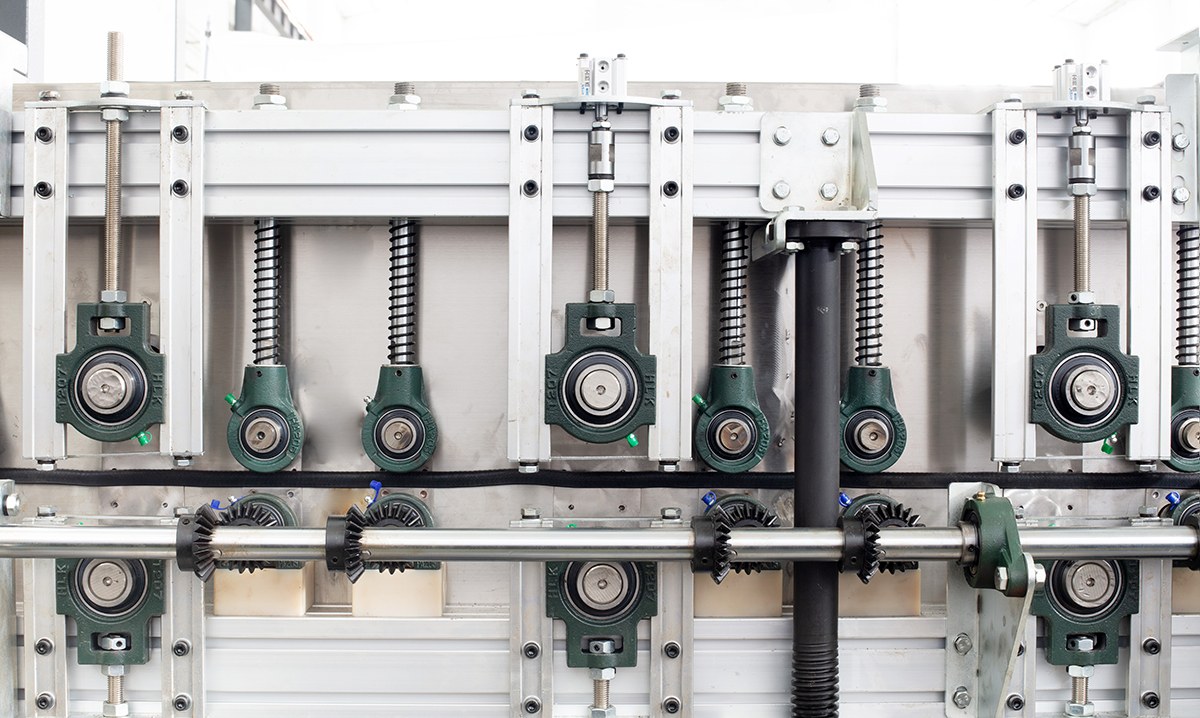

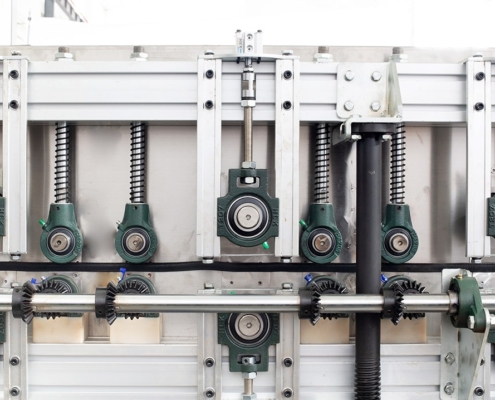

| Brush shaft diameter | 170 mm |
| Roller diameter | 75 mm |
| Water tanks | 4 |
| Air knives | 3 pairs |
| Blower | 1 x 30 kW |
| Loading and unloading zones | Around 1600 mm each |
| Table height | 900 ± 50 mm |
| Total power | 69 kW (estimated) |
| Net weight | 4500 kg |
Full power ratings, site requirements, component brands and the machine layout are in the spec sheet.
