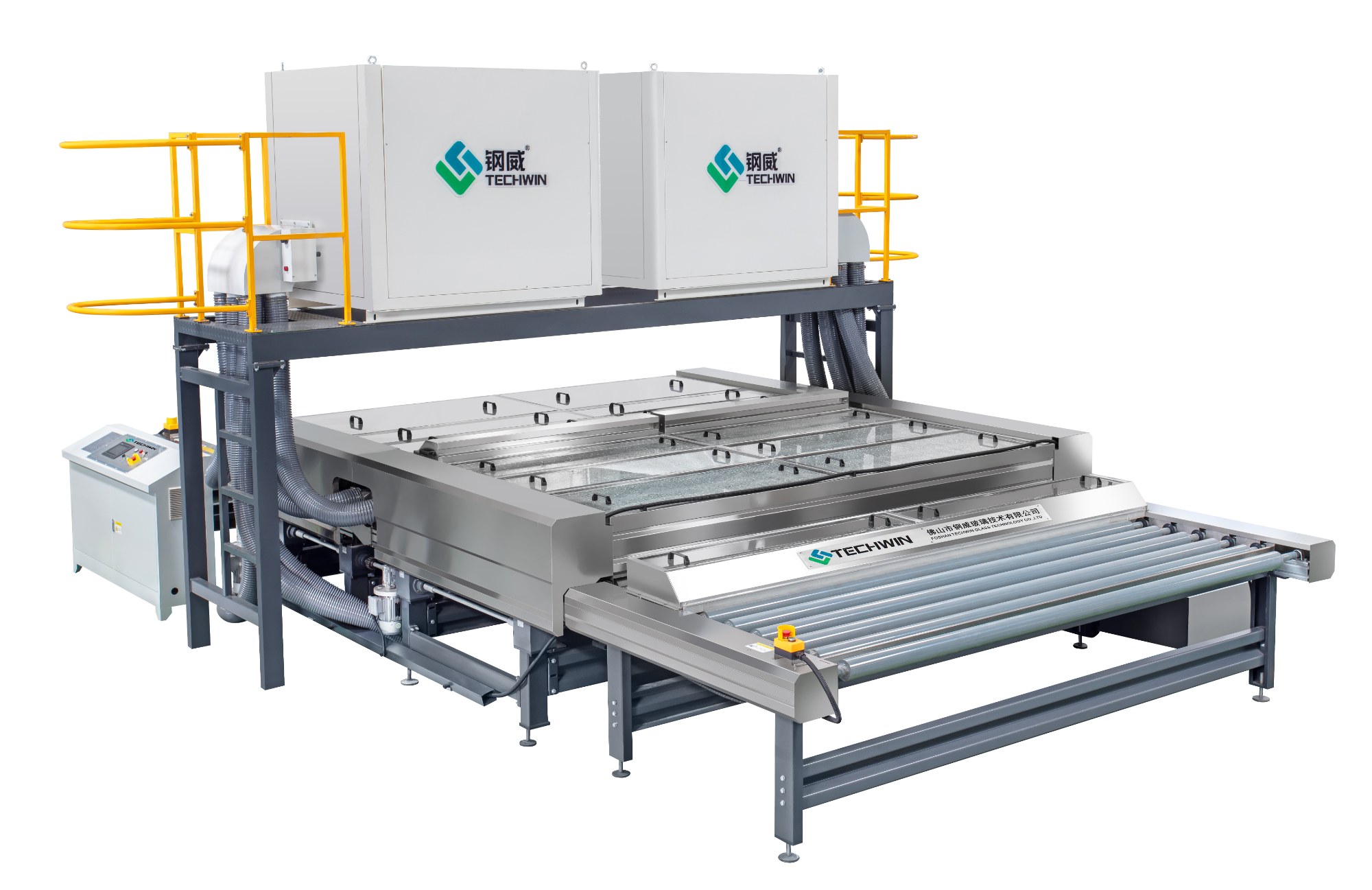

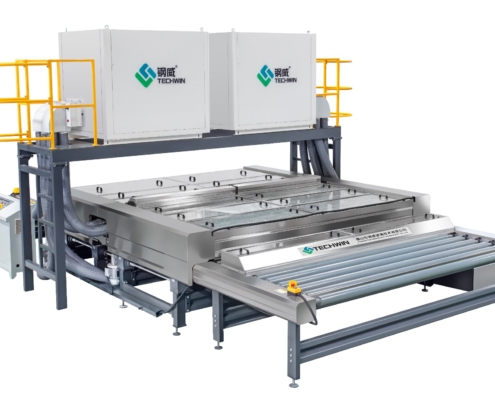

TECHWIN TWQX-3300G-3 JUMBO HORIZONTAL GLASS WASHING MACHINE
A heavy-duty horizontal washing and drying machine for jumbo architectural glass up to 3300 mm wide and 3 to 25 mm thick, with two blowers for drying.
Enquire about Techwin TWQX-3300G-3 Jumbo Horizontal Glass Washing Machine
Get the TWQX-3300G-3 spec sheet
Large panels for facades and curtain walls need a washer with the structure and drying power to match. The TWQX-3300G-3 combines a pre-wash with two rinsing bars, three pairs of brushes and three pairs of air knives fed by two high-pressure blowers, on a sturdy steel and aluminium structure. With PLC and touch screen, it can be integrated into a production line with a double edger. Techwin is a specialist manufacturer of glass washing machines, and the TWQX-3300G-3 is supplied and supported locally by Innovync.
KEY FEATURES
- Built for Jumbo Glass: sturdy steel and aluminium structure for glass up to 3300 mm wide.
- Pre-Wash with Air Knife: two rinsing bars spray from top and bottom, and an air knife after the pre-wash keeps dirty water out of the washing zone.

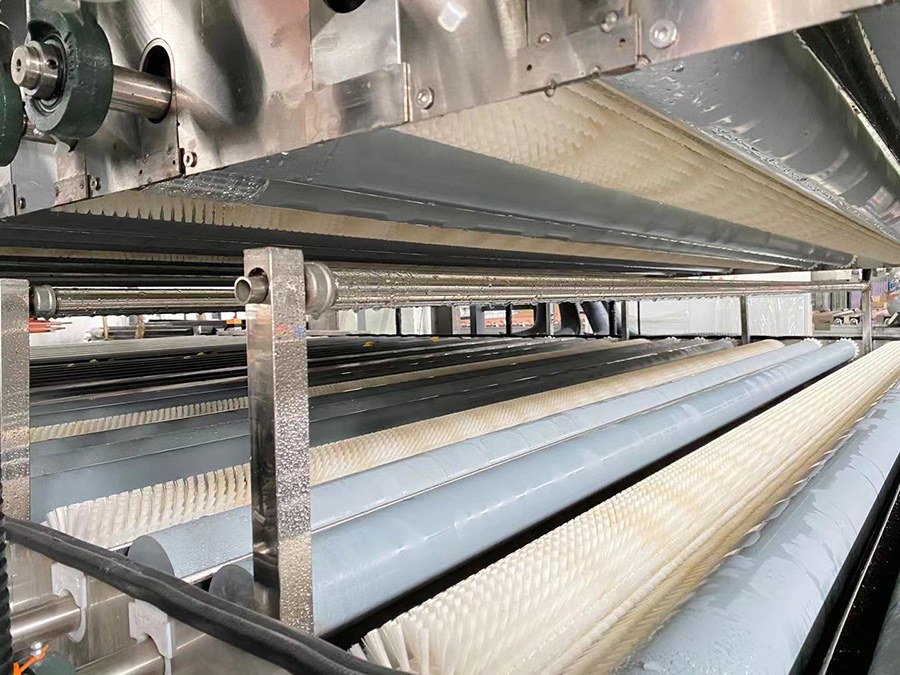

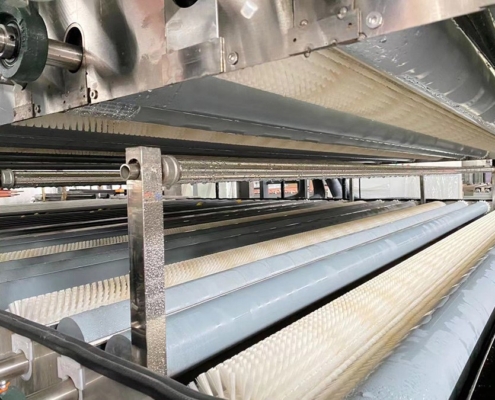

- Three-Stage Brush Washing: six cylindrical brushes, three upper and three lower, with each brush pair served by its own stainless steel tank, pump, filters and heating system.
- Low-E Glass Ready: the last top brush is a soft brush for Low-E glass.

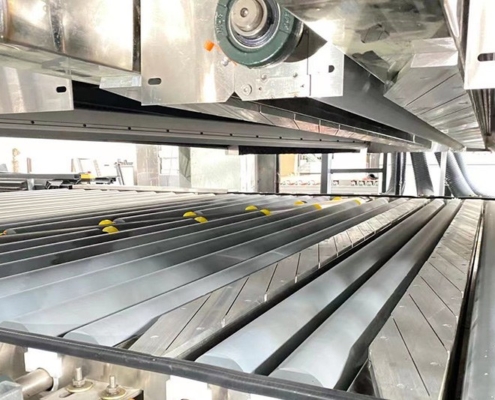

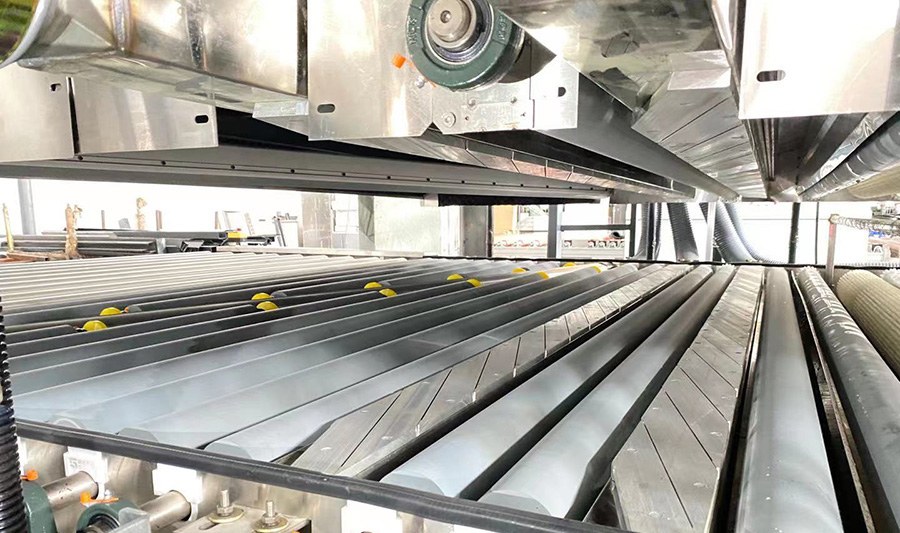

- Double Blower Drying: three pairs of straight and angled air knives fed by two high-pressure blowers, with air heating and a low-noise air system.
- Adjustable Air Knives: air knife height and angle can be adjusted.
- Lift-Up Washing and Drying Section: lifts 350 mm for easy maintenance.
- 304 Stainless Steel Wet Parts: covers, tanks, filters, spraying pipes, brush and roller shaft ends, pans and protection parts in the washing zone.

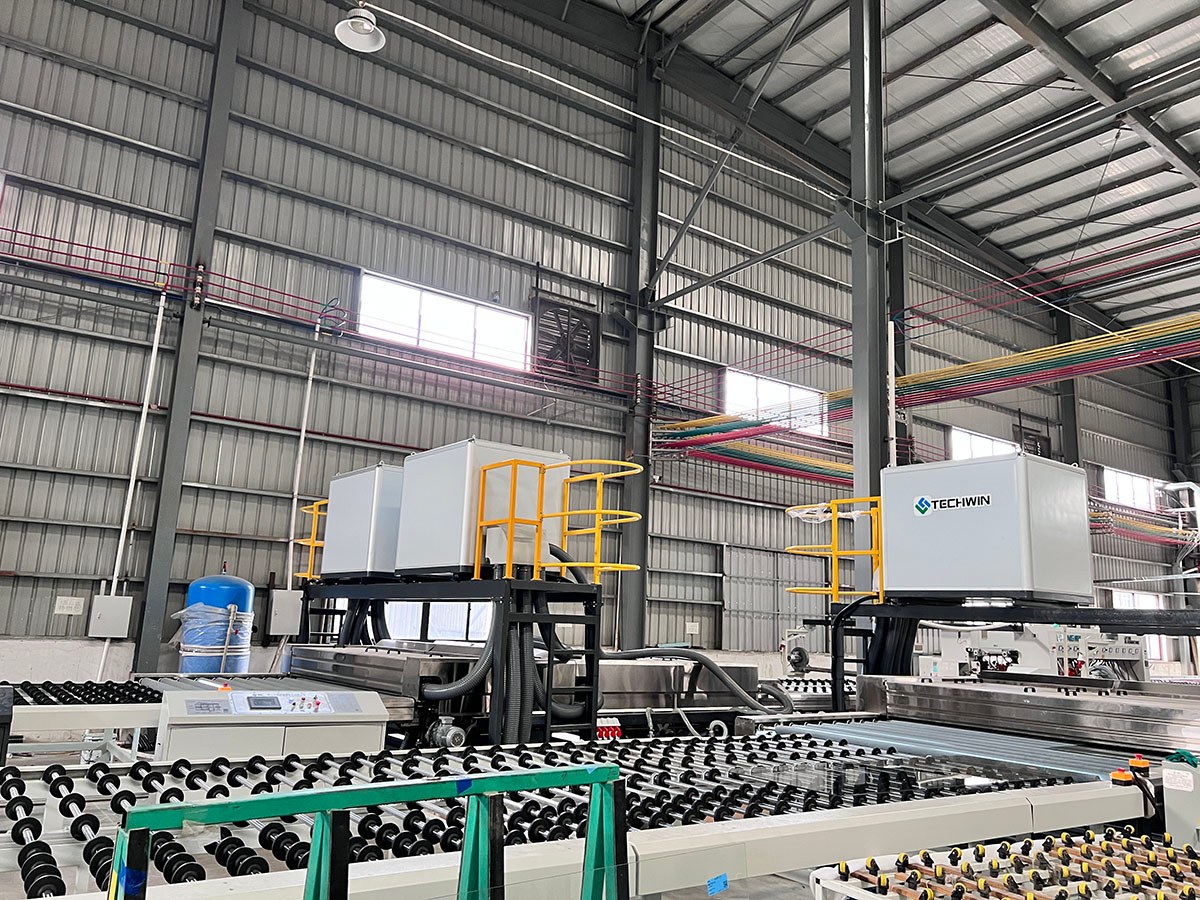

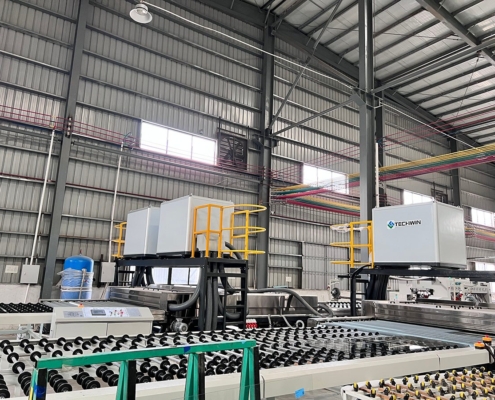

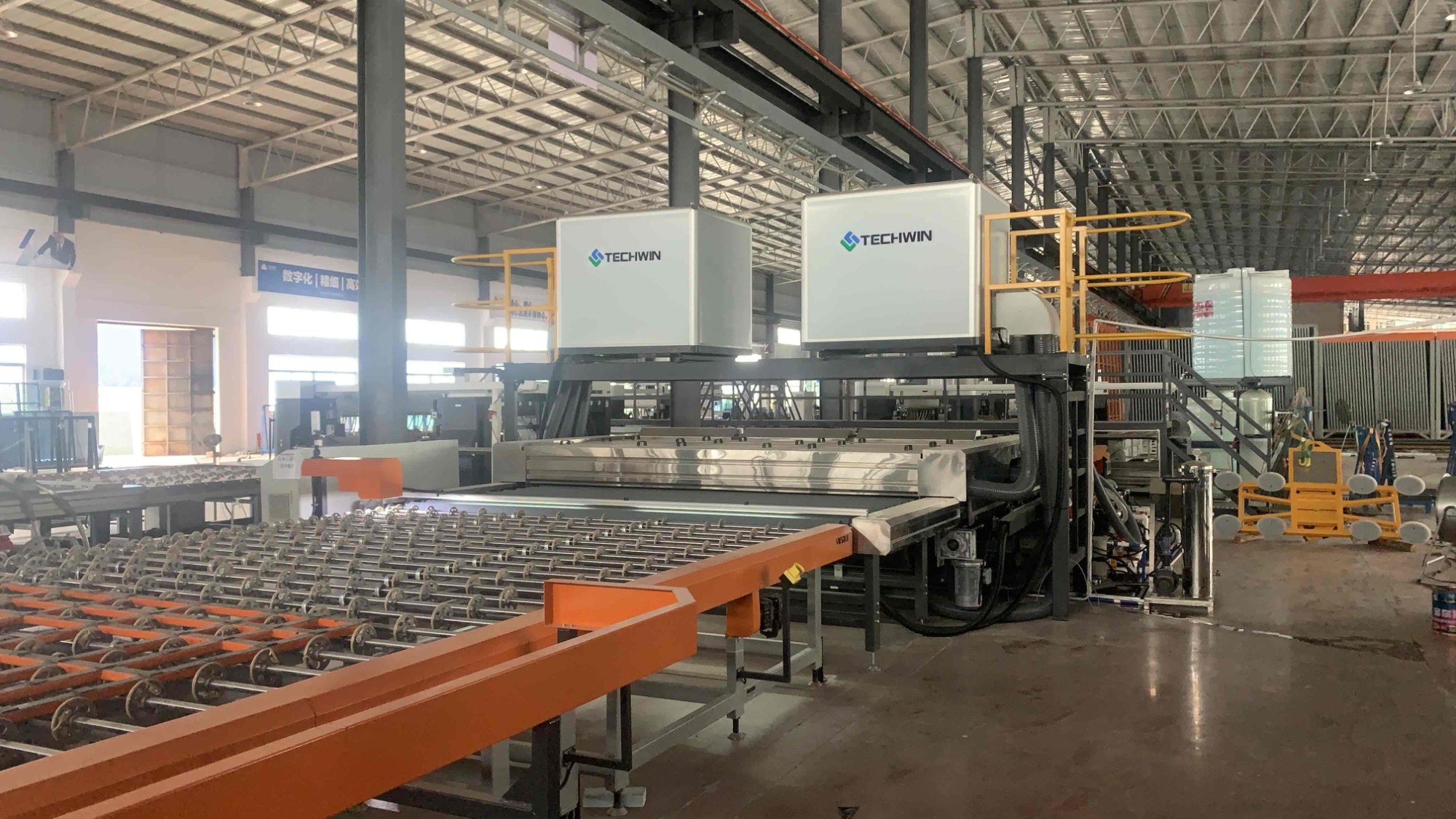

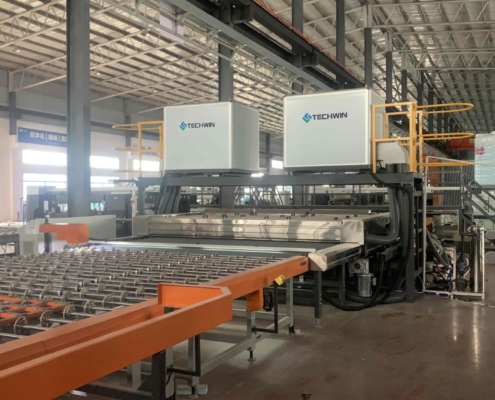

- Line Integration: PLC and touch screen allow the washer to be integrated into a production line with a double edger.
APPLICATIONS
- Facade glass
- Curtain wall glass
- Other jumbo size architectural glass up to 3300 mm wide
- Production lines with a double edger
INDUSTRIES
- Architectural Glass Processing
- Facade and Curtain Wall Manufacturing
- Commercial Glazing
- Window and Door Manufacturing
TECHNICAL SPECIFICATIONS
| SPECIFICATION | TWQX-3300G-3 |
| Max. glass width | 3300 mm |
| Min. glass size | 400 x 400 mm |
| Glass thickness | 3 to 25 mm |
| Working speed | 1 to 16 m/min (the thinner the glass, the higher the speed) |
| Pre-wash | 1 set, with 2 rinsing bars |
| Brushes | 3 pairs |
| Hard brush bristle diameter | 0.25 mm |
| Soft brush bristle diameter | 0.08 mm |
| Brush shaft diameter | 170 mm |
| Roller diameter | 90 mm |
| Water tanks | 4 |
| Air knives | 3 pairs |
| Blowers | 2 x 22 kW |
| Loading and unloading sections | Around 1600 mm each |
| Table height | 900 ± 50 mm |
| Total power | 89 kW (estimated) |
| Net weight | 5500 kg |
Full power ratings, site requirements, component brands and the machine layout are in the spec sheet.
